Antenna
2x2 + 2x2 MIMO embedded antenna
Antenna gain:
2.4GHz: 3 dBi
5GHz: 4 dBi
Temperature
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Dimensions
140 x 140 x 37.5mm /5.51 x 5.51 x 1.48in
Weight
290g /0.64lb.
PoE in
PoE (802.3at): power draw 16 W
DC jack input Voltage
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
Wireless Rate
2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Wireless frequency
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Wireless standards
IEEE 802.11 ax/ac/n/g/b/a
Ethernet
1 x 10/100/1000M LAN
Wireless Security
WPA Personal
WPA2 Personal
WPA3 Personal
Others
MU-MIMO
Warranty
1 year

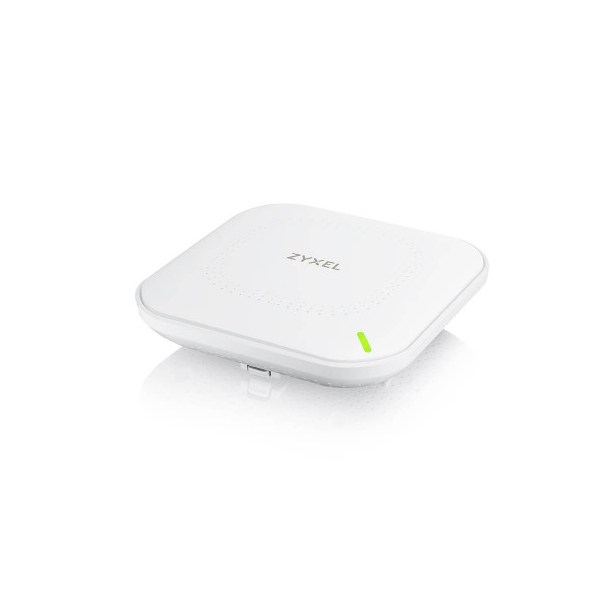

The Zyxel NWA50AX 802.11ax Supported Dual-Radio PoE Wireless Access Point is built specifically for Learning Institutions. You can rely on the robust hardware architecture of this Access Point. The NWA50AX is intended to provide consumers with a realistic experience in a variety of applications. With 6 spatial streams of 4x4:4 at 5GHz and 2x2:2 at 2.4GHz, as well as OFDMA and MU-MIMO features, the NWA50AX can deliver fantastic efficiency for your wireless networking. To accommodate the increased demand for WiFi connection, the NWA50AX adds 2.90 Gbps WiFi speed and a 2.5 Gbps multi-gigabit Ethernet connector to the network.
