Type
ROHS Switch
Port
Total port count: 24
Dual-personality GbE ports: 4
Network Standard
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-Tx Ethernet
IEEE 802.ab 1000BASE-T Ethernet
IEEE 802.3z 1000BASE-X
IEEE 802.3x flow control
IEEE 802.1d spanning tree protocol
IEEE 802.1w rapid spanning tree protocol
IEEE 802.1s multiple spanning tree protocol
IEEE 802.1p class of service, priority protocols
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication
IEEE 802.3ad LACP aggregation
IEEE 802.3az Energy Efficient Ethernet (EEE)
Transmission Method
Store and Forward
Data Transmission Rate
Switching capacity (Gbps): 12.8
Forwarding rate (Mpps): 9.6
MAC Address Table
16 K
Environment
Operating-
Temperature: 0°C to 50°C/32°F to 122°F
Storage-
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 10% to 90% (non-condensing)
Interface
Qty: 24
Power Supply
Input Voltage of AC: AC Power input (100V~240V)
Input Voltage of DC: -37 to -72 V DC
Maximum Power Consumption (Watt): AC=14, DC=14
Dimensions (L x W x H)
440 x 200 x 44.5 mm
Weight
2.6 Kg
Warranty
1 Year

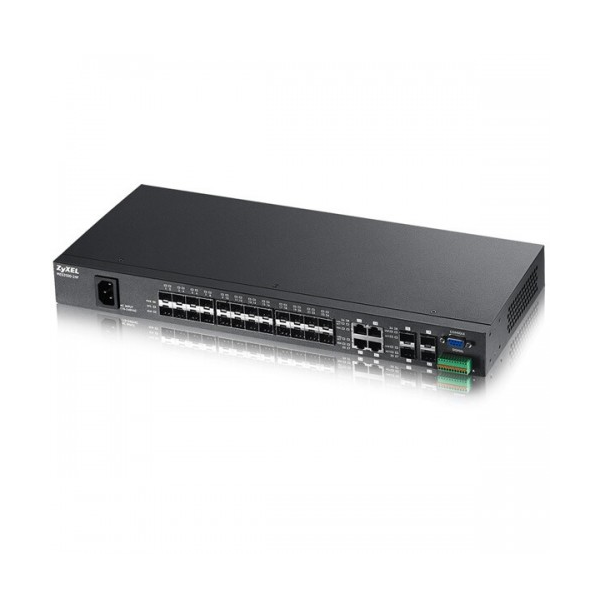

The Zyxel Zyxel MES 3500-24F 24-port FE Fiber L2 Switch with Four GbE Combo Port provides wire-speed flow management that classifies and prioritizes incoming packets based on predefined QoS criteria that match service provider needs. To determine the priority of incoming packets, the Differentiated Services Code Point (DSCP) field and the 802.1p Class of Service (CoS) field are identified. Classification and reclassification criteria might be as detailed as rules based on IP addresses, MAC addresses, VLAN IDs, or TCP/UDP port numbers.
