Type
Desktop Gigabit Ethernet Switch
Port
8x10/100/1000 Gigabit Ethernet RJ45 Ports
Network Standard
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet
Data Transmission Rate
Data transfer rate (half-duplex/full-duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
Memory buffer: 128 KB
Switching fabric (non-blocking): 16 Gbps
MAC Address Table
4 K
Environment
Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 95% (Non-condensing)
Interface
Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
LED
LED Indicator
PWR: Power
Per-port: Link/Activity
Amber: 10/100 Mbps
Green: 1000 Mbps
Power Supply
Input: 100-240 V AC
Output: 5 V DC, 1 A
Power consumption: 3.0 watt max.
Dimensions (L x W x H)
(WxDxH): 155 x 85 x 26 mm (6.1" x 3.3" x 1.0")
Weight
325 g (0.72 lb.)
Warranty
01 Year

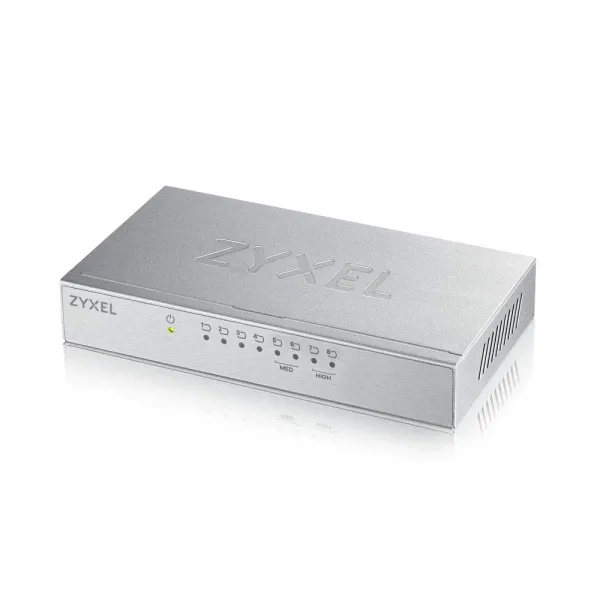

The Zyxel GS-108B v3 8-Port Desktop Gigabit Ethernet Switch connects network devices to the home network at Gigabit speeds. The newly designed QoS ports provide uninterrupted data flow for bandwidth-intensive applications such as VoIP and data communications. The GS-108B v3 is suited for every occasion. Its sturdy, compact design adds adaptability to wired home networks, whether put on a desktop or a wall.
