Antenna
13 Internal Antennas
Button
Reset Button
Wireless
Guest WiFi
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
Auto channel selection
Wireless scheduling
MAC address filtering

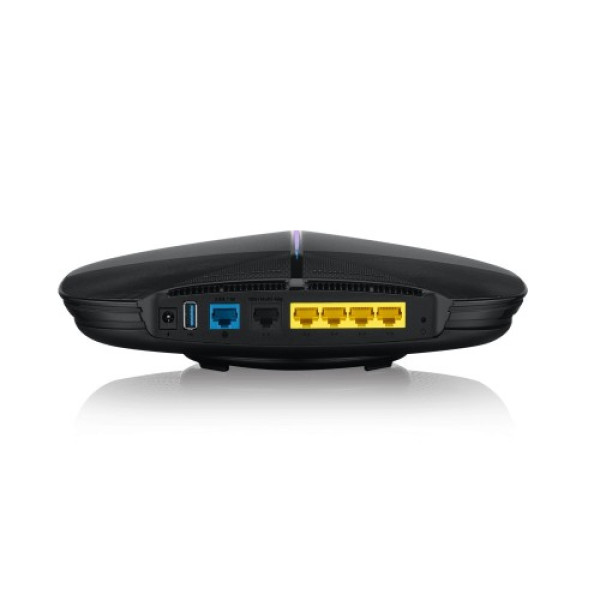

Interface
One 2.5G/1G WAN port
One 10G/5G/2.5G/1G LAN port
Four 1000/100/10 Mbps Gigabit Ethernet ports
One USB 3.1 Gen 1 port (5V/900mA)
Data Rate
Transmit:
1200Mbps for 2.4 GHz
4800Mbps for 5 GHz
Receive:
1200Mbps for 2.4 GHz
4800Mbps for 5 GHz
Network Standard
IEEE 802.11 b/g/n/ax 2.4 GHz
IEEE 802.11 a/n/ac/ax 5 GHz
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40 MHz, up to 1.2 Gbps
5GHz AX: 8x8 (Tx/Rx) 1024 QAM 20/40/80/160 MHz, up to 4.8 Gbps
Compatible with 802.11a/b/g/n/ac WiFi standards
Encryption
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
VPN Support (OpenVPN)
VPN Client Support
WPA3-PSK
WPS Support
Guest Network
Automatic Firmware Update
Ports
WAN: One 100M/1000M/2.5Gbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN: One 100M/1000M/2.5G/5G/10Gbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN: Four 10M/100M/1000Mbps Ethernet RJ-45 ports with auto MDI/MDIX Support
Others
CPU: 64 bit quad-core 2.2 GHz
Memory: 4GB Flash/ 1GB RAM
Power Mode
Power: 19V/2.1A
Power consumption: 39W max.
Dimension
248 x 182 x 66 mm (9.8 x 7.2 x 2.6 inch)
Weight
1kg (2.2 lb.)
Color
Black
Warranty
1 Year

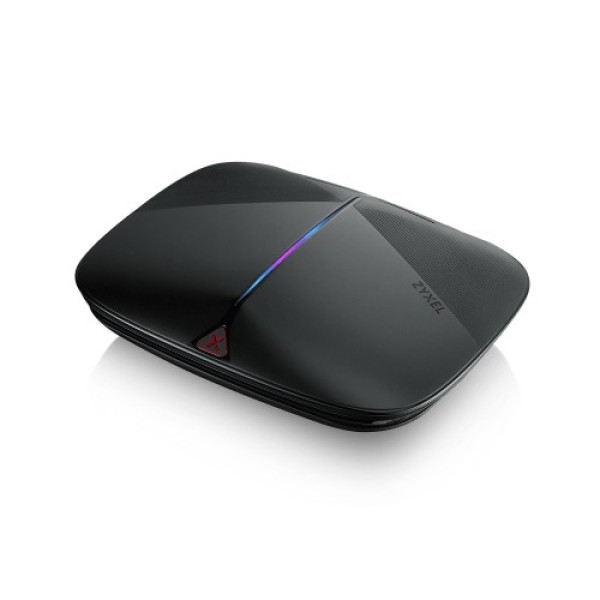

The Zyxel Armor G5 AX6000 12-Stream Multi-Gigabit WiFi 6 Router is equipped with 802.11AX future-proof technology, which delivers up to 6000 Mbps with improved efficiency and throughput. The Armor's 12 WiFi streams allow it to send and receive more data from numerous connected devices, resulting in more accessible bandwidth and less congestion than a regular WiFi 5 (11ac) router. The Armor G5 has a multi-gig 10G/5G/2.5G/1G Ethernet LAN connector for connecting to multi-gig compatible media servers, network-attached storage devices, switches, and other devices capable of up to 10 Gbps rates. It is equipped with a 64-bit 2.2 GHz quad-core CPU that offers high-quality streaming without losing speed.
