Sensor
Z-ID
Display
5" ISP Color LCD Screen (720 x 1280)
Face capacity
6,000 (1:N) (Standard) / 10,000 (1:N) (Optional)
6,000 (1:1)
Fingerprint capacity
6,000 (1:N) (Standard) / 10,000 (1:N) (Optional)
6,000 (1:1)
ID Card capacity
10,000 (1:N) (Optional)
10,000 (1:1)
Logs capacity
200,000 (1:N) (Optional for Capacity Expansion)
Standard Function
ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,
Record Query, Tamper Switch Alarm, Multiple Verification Methods
Communication
TCP/IP*1
Wiegand (Input & Output)*1
RS485: ZKTeco RS485*1
Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1,
Others
CPU: 1.GHz Dual Core
RAM: 1GB; ROM: 8GB
Supplement Light: Yes
Virtual Keypad: 12 Keys
Camera: WDR Low Light Camera 2MP
Power Supply
DC 12V 3A
Operating Temperature
-10°C ~ 45°C (14°F ~ 113°F)
Operating Humidity
10% to 90% RH (Non-condensing)
Dimensions
91.93mm x 202.93mm x 21.5mm (LxWxH)
Weight
Gross Weight: 1.3 Kg
Net Weight: 0.6 Kg

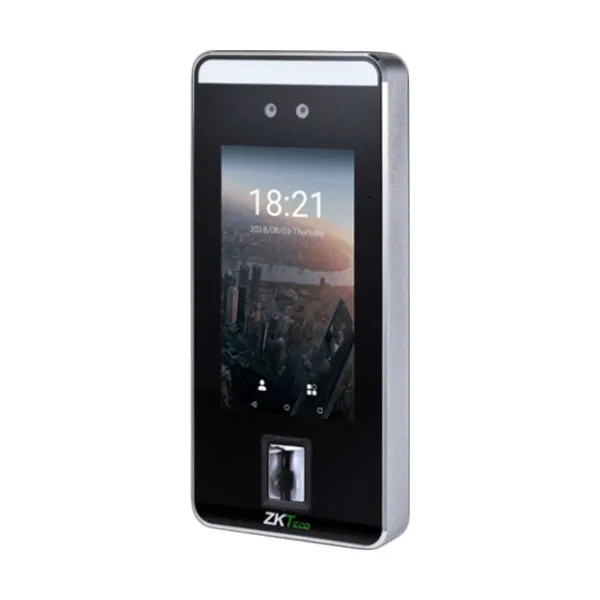

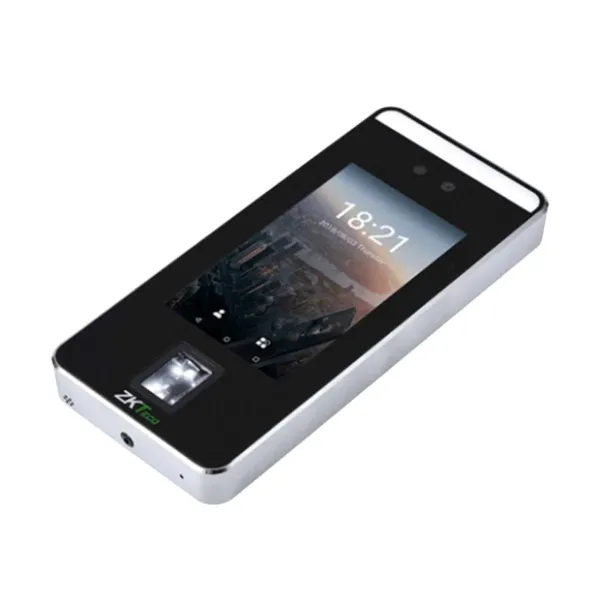

The ZKTeco SpeedFace-V5L Biometric Time Attendance and Access Control Terminal is a device that can identify and control the access of employees using their face, fingerprint, and ID cards. It has a large capacity that can store up to 6,000 faces, 6,000 fingerprints (standard), and 10,000 ID cards in its memory. It has a 5-inch touchscreen display that shows the time, date, and user information. It also has a 2MP WDR low light camera that can capture clear and bright face images in various light conditions.
