Operating System
Linux system
IP Camera Input
32 Channel
Two-Way Talk
N/A
Interface
HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
Resolution
8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Decoding Capacity
2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Resolution
8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Video Detection
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Behavior Search, People Flow Counting, Crowd Density Monitoring
Alarm Input
1 Channel, RCA
Sync Playback
32 Channel
Third Party Support
ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Interface
2 RJ45
Ethernet Port
10M/100M/1000M self-adaptive Ethernet Interface
Maximum User Access
Remote Users: 128
Internal HDD
4 SATA interface
HDD Mode
Up to 8TB for each HDD
eSATA
N/A
USB
Rear panel: 1 x USB2.0, 1 x USB3.0
Front panel: 1 x USB2.0
Power Supply
12V DC
Power Consumption
≤ 15W( without HDD )
Operational Conditions
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH(non-condensing)
Dimensions
440mm × 344mm ×50mm (17.3" × 13.5" ×2.0")
Net Weight
≤ 3.15 Kg (6.94 lb)
Warranty
1 Year Warranty

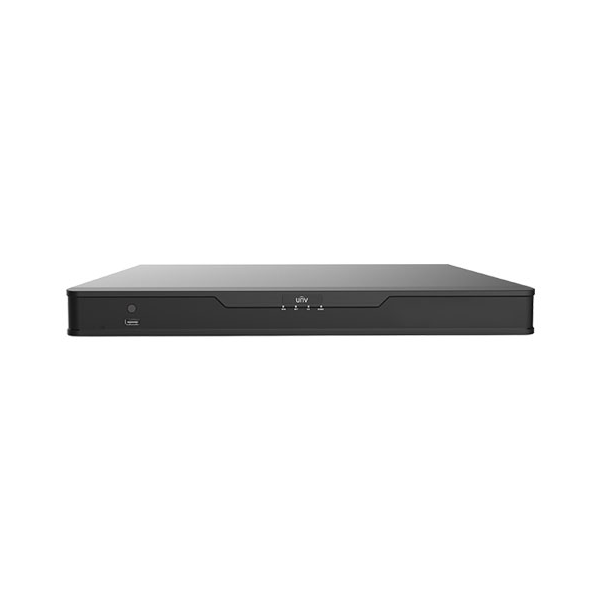

The Uniview NVR304-32S 32 Channel 4K 4 HDDs NVR included RCA and G.711A, G.711U Audio Compression. This Uniview NVR304-32S features four SATA connections, each with a disk capacity of up to 8TB. The maximum capacity of an HDD changes with the temperature of the surroundings. The working environment for this Uniview is -10°C + 55°C (+14°F +131°F), the humidity is 90% RH (non-condensing), the dimensions are 440mm 344mm 50mm (17.3" 13.5" 2.0"), and the device weighs 3.15kg without HDDs. Without HDDs, this gadget consumes up to 15w of electricity.
