Operating System
Linux system
IP Camera Input
16 Channel
Interface
HDMI: 3840x2160(4K), 1920x1080p, 1600x1200, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Resolution
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Compression
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Video Detection
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting
Sync Playback
16 channel
Third Party Support
ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Interface
1 RJ45
Ethernet Port
10M/100M/1000M self-adaptive ethernet interface
PoE
Maximum Power 30W for single port
Maximum Power 240W in total (15W for each)
Maximum User Access
Remote Users: 128
Internal HDD
2 SATA interface
HDD Mode
Up to 16TB
USB
Rear panel: 1 x USB2.0
Front panel: 1 x USB2.0
Power Supply
220V AC
Power Consumption
≤9 W (without HDD)
Operational Conditions
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions
380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
Net Weight
≤2.4kg (5.29 lb)
Warranty
1-year Warranty

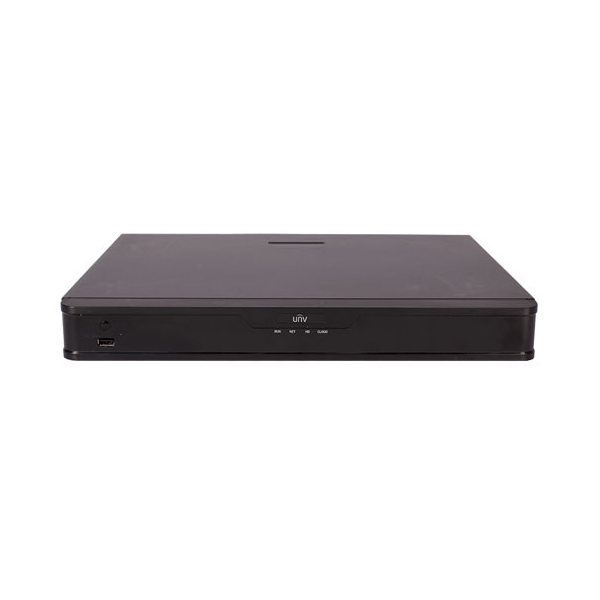

The Uniview NVR302-16S-P16 Channel 4K PoE NVR includes a professional IP Network Video Recorder. This NVR is equipped with 16 PoE channels. The Uniview NVR302-16S-P16 16 Channel 4K PoE NVR supports third-party cameras that are ONVIF compliant in Profile S, Profile G, Profile C, Profile Q, Profile A, and Profile T. This Uniview NVR has a fantastic feature: a quieter fan. The Uniview NVR302-16S-P16 16 Channel 4K PoE NVR includes the most advanced features to make it incredibly user-friendly. Uniview NVR302-16S-P16 has an expanded PoE range of up to 250 meters and a PoE maximum power of 30W for a single port and 240W total in 15W for each.
