Image Sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS
Effective Pixels
5.0 Megapixel
IR Distance
Up to 30m
Others
Material: Cast aluminum
Type
AF automatic focusing and motorized zoom lens
Focal Length
2.7 ~ 13.5mm
Angle of View
Angle of View (H) 93.38° ~ 28.56°
Angle of View (V) 88° ~ 16.4°
Angle of View (O) 121.4° ~ 33.7°
Dimension
148 x 111.3mm (Ø5.8” x 4.4”)
Weight
0.92kg (2.0lb)
Interface
1 RJ45 10M/100M Base-TX Ethernet
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
1 BNC, impedance 75Ω; amplitude 1V [p-p]
Ø 5.5mm coaxial power plug
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.7W
Others
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Warranty
02 years warranty

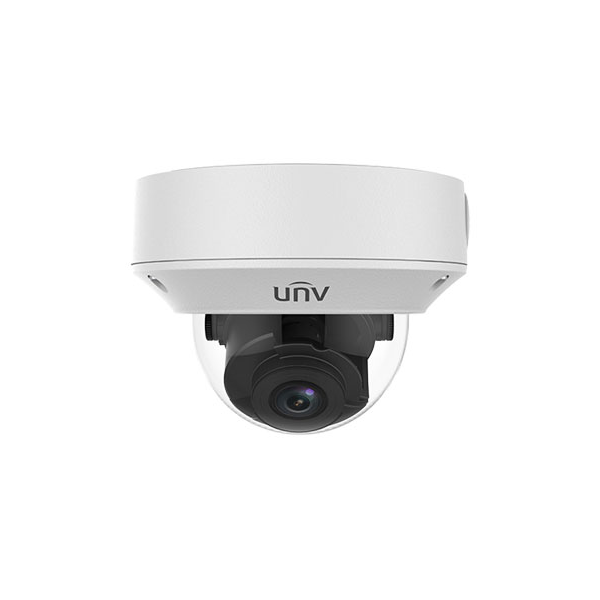

The Uniview IPC3235ER3-DUVZ 5MP Dome Network Camera captures clear, detailed photos in a range of lighting conditions. It contains a 1/2.7" progressive scan CMOS sensor that shoots video at 25 frames per second with a resolution of 2592 x 1944. It also has a 2.7133.5mm optical zoom lens with autofocus, allowing you to change the viewing angle and focus remotely.
