Integrated network management ports
24 x 1000Base-T - RJ-45
2 x USB 3.0 - Type A
1 x console - RJ-45
1 x management - RJ-45
6 x 10GBase-X - SFP+
4 x 5Gb Ethernet - SFP+
Storage
128 GB M.2
Storage Expansion Slot (Up to 256GB)
Power supplies
AC 120/230 V (50/60 Hz)
Operating Temperature
32°-105° F (0°-40° C)
Weight
3.11 lbs
Others
Firewall throughput: 5.5 Gbps
Threat prevention throughput: 3.5 Gbps
Application throughput: 4.2 Gbps
IPS throughput: 3.8 Gbps
Anti-malware throughput: 3.5 Gbps
TLS/SSL inspection and decryption throughput: 850 Mbps
VPN throughput (IPSec): 2.2 Gbps
Connection rate: 22500 connections per second
DPI connections: 750000
Maximum number of access points: 32
VPN tunnels (site-to-site): 3000
SPI connections: 2000000
Virtual interfaces (VLANs): 256
DPI SSL connections: 150000
IPSec VPN clients: 50
SSL VPN licenses: 2
Authenticated users (internal database): 250

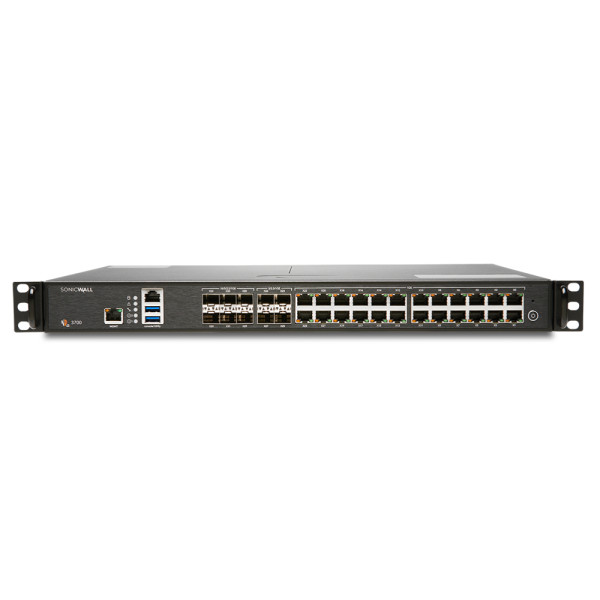

The SonicWall Network Security Appliance (NSA) series combines the SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to provide intrusion prevention, gateway anti-virus, gateway anti-spyware, and application intelligence and control for businesses of all sizes. The NSA series offers comprehensive next-generation firewall protection without sacrificing performance by combining automated and dynamic security capabilities on a single platform. Along with greater power economy, SonicWall NSA series appliances reduce the complexity and time required to install, deploy, and maintain security systems, lowering the total cost of ownership. A straightforward GUI and sophisticated set-up wizards make it simple to configure and fine-tune network settings, application restrictions, VPN connections, and other features
