Model: SOL-3012X

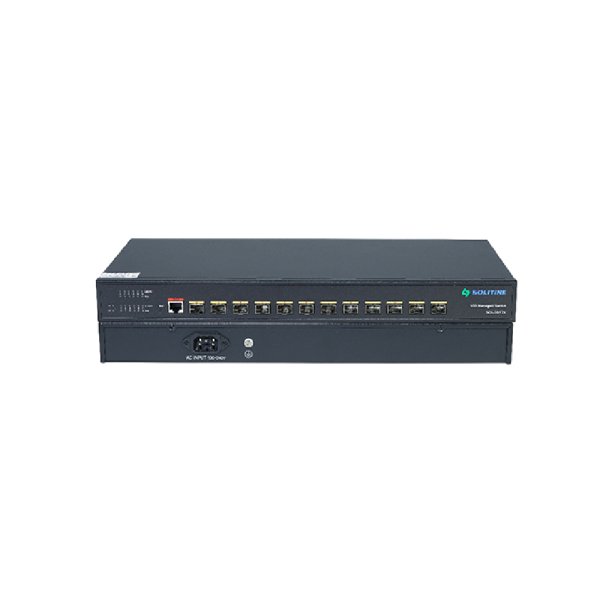

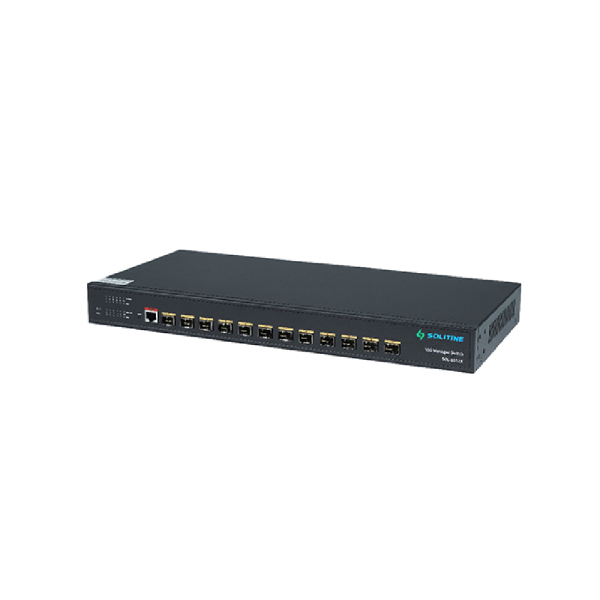

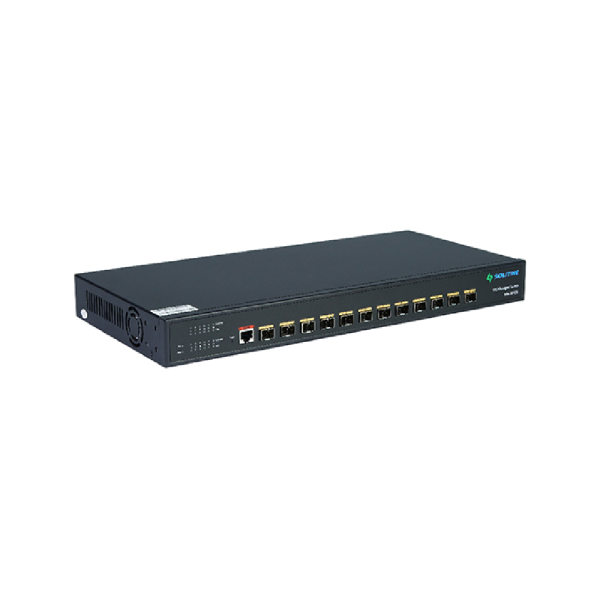

Solitine SOL-3012X 12-Port 10G SPF+ Managed Switch

Key Features
  • Interfaces: 12x 1G/2.5G/10Gbps SFP+ ports, 1x Console port
  • Power Supply: AC 100-240V 50/60Hz DC 12V 8A
  • Switch capacity: 240Gbps
  • MAC address table: 32K
Up Coming
receipt Request Quotation

Technical specifications

Main Feature

Port

12 Ports-

Network Standard

IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ad (Link Aggregation) IEEE 802.1AB LLDP/LLDP MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol (Fast Spanning Tree) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1p (VLAN Tag) IEEE 802.1X (User Authentication)

Data Transmission Rate

Forwarding Rate 178.56 Mpps
Packet Buffer Size 16Mbit
Switching Capacity 240Gbps

MAC Address Table

32K

Environment

Operating Temperature 0~40°C
Storage Humidity 5%~95%, non condensing
Storage Temperature 40~70°C

Hardware Features

Interface

Port Switch configuration Port Description configuration Port Speed configuration Port Duplex configuration Port Flow Control configuration Support 10G/2.5G Jumbo Frame, Up to 12K EEE Fiber Module(DDM)

Power Supply

AC 100-240V 50/60Hz DC 12V 8A

Dimensions (L x W x H)

440.0mmx240.0mmx44.0mm

Manufacture Warranty

Warranty

No

Description :

Solitine SOL-3012X 12-Port 10G SPF+ Managed Switch

The Solitine SOL-3012X 12-Port 10G SFP+ Managed Switch is a high-performance Layer 3 model built for enterprise networks, data centers, and ISP backbone deployments. It features 12× 1G/2.5G/10Gbps SFP+ ports that deliver ultra-fast data transmission with a switching capacity of 240Gbps and a forwarding rate of 178.56 Mpps. The model supports advanced Layer 3 routing, including IPv4/IPv6 routing, static routes, RIP v1/v2, OSPFv2, ARP, and IPv6 ND, making it suitable for complex and scalable networks. VLAN support includes MAC VLAN, Protocol VLAN, and up to 4094 VLAN IDs, ensuring efficient traffic segmentation and management. Hardware specifications include AC 100-240V 50/60Hz and DC 12V 8A power supply, jumbo frame support up to 12K, and surge protection rated at Air 8KV and Contact 6KV. The model complies with IEEE standards such as IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE802.3az, IEEE802.3ad, IEEE802.1AB, IEEE802.1D, IEEE802.1w, IEEE802.1s, IEEE802.1Q, IEEE802.1p, and IEEE802.1X, ensuring compatibility, efficiency, and secure authentication. It offers a 32K MAC address table, 16Mbit packet buffer, and support for link aggregation, spanning tree protocols, and energy-efficient Ethernet. The SOL-3012X model includes a console port for management and compatibility with fiber modules featuring DDM support. Environmental specifications allow operation between 0–40°C and storage between –40–70°C with humidity levels of 5–95% non-condensing. These features make the Solitine SOL-3012X a reliable, versatile, and future-ready managed switch that enhances enterprise networking infrastructure.
