Input Voltage
(110-300)VAC
Output Voltage
220*(1±2%)VAC
Frequency (Battery Mode)
50±0.05Hz (Battery mode)
Battery
Type: Maintenance-free Sealed Lead-acid UPS Batteries
Number of Internal Battery: 6PCS
Recharge Current: 6 A
Alarm
Battery Discharge- Battery full: 1buzzing/4s; Battery empty: 1buzzing/1s
Alarm UPS- Buzzing continue
Voltage Range
110~275 VAC
Frequency
40 Hz-70 Hz
Power Factor
≥0,98
Voltage Range
(110-300)VAC
Power Factor
0.9@30°C and 0.8@40°C;
Type of Wave
Pure sinewave
Transfer Time
0ms
Backup Time
>4,5 mnt (depends on customer configuration)
Dimension
438*570*87
Warranty
2 Years Warranty

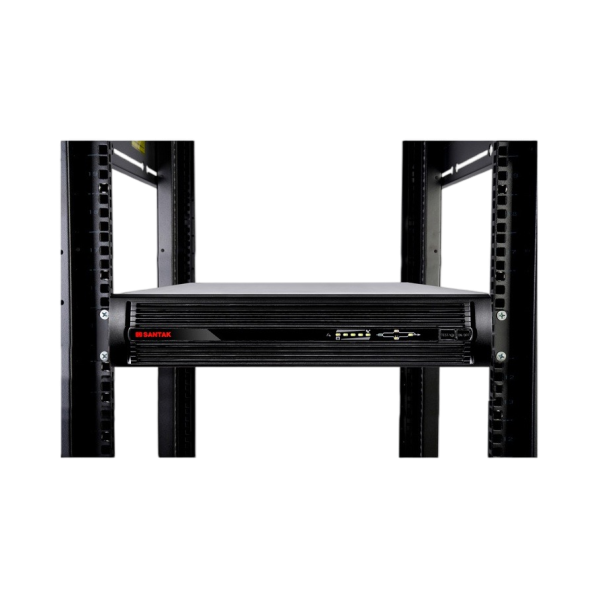

The SANTAK Rack 3K 3000VA Online UPS is a robust and trustworthy backup solution that is ideal for protecting critical equipment, such as servers and networking infrastructure. It can operate in a broad range of input voltage ranges (110-300 VAC) and frequency ranges (40-70 Hz) because to its 3 kVA power rating, which makes it compatible with a number of power sources. The UPS ensures uninterrupted power supply by producing a constant 220 VAC output with no transfer time between the inverter and battery modes.The maintenance-free sealed lead-acid batteries that power the SANTAK Rack 3K, which has three IEC C13 outlets and one C19 outlet, support a wide range of devices. LED indicators provide you with clear status updates, while loud alarms alert you of UPS status and battery degradation. It is rack-mountable, 438x420x87 mm in size, and weighs 21.6 kg. Modbus, NMC, and relay cards are add-ons that can be added for better control and monitoring. This UPS is an essential component of any significant infrastructure since it offers trustworthy performance and protection.both functionality and safety.
