Standard
EN 50173-1
IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets ISO/IEC 11801
Connector Class
Connection Module
Shielding Connector
Unshielded
Connector Type
RJ45
Category Connector
Cat. 6
Poles
8
Dimensions
18.2 mm x 22.7 mm x 41.3 mm / 0.717 in x 0.894 in x 1.626 in (W x H x D)
Color
Green

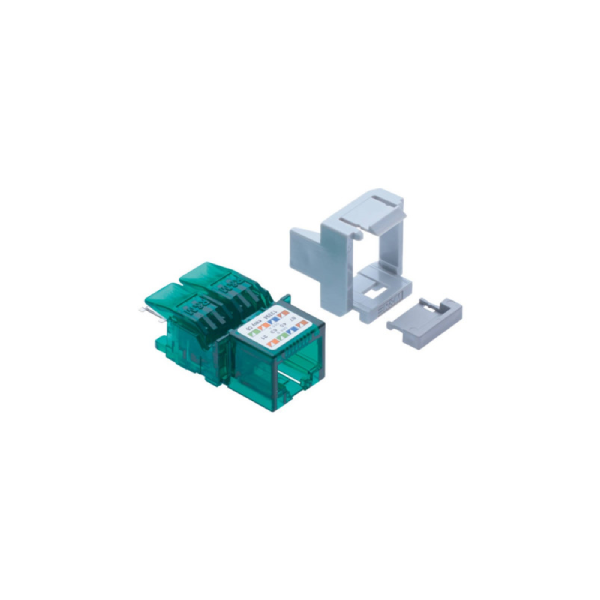

The R&M Cat 6 Tool Free Termination Jack, the connection module, surpasses the IEEE 802.3 Section Four standard's minimum requirements for 10GBASE-T performance, as well as the standards for Class EA performance according to ISO/IEC 11801 and Cat. 6A performance according to TIA 568.2-D. It exceeds Cat.6 standards in the whole permissible range according to ISO/IEC 11801, EN 50173, and TIA 568.2-D. Maximum dependability is achieved by the use of a specific contact design with no internal transfer points. This Termination Jack is capable of both capacitive and inductive compensation.
