Standard
EN 50173-1
IEC 60603-7: Electrical Characteristics of the Telecommunication Outlets ISO/IEC 11801
Connector Class
Connection Module
Shielding Connector
Unshielded
Connector Type
RJ45
Category Connector
Cat. 6
Holder for Connector
Mounting plate
Poles
8
Dimensions
18.2 mm x 22.7 mm x 41.3 mm / 0.717 in x 0.894 in x 1.626 in (W x H x D)
Color
Green

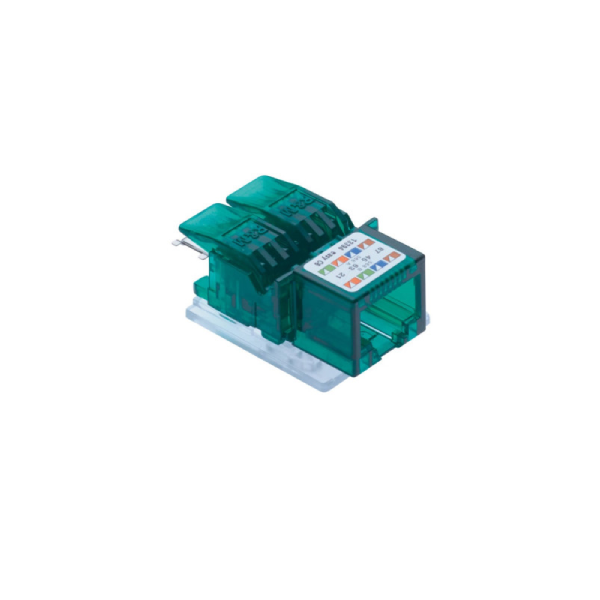

The R&M Cat 6 Tool Free Termination Jack is part of a Cat. 6 channel, and the connection module exceeds the IEEE 802.3 Section Four standard on 10GBASE-T performance, as well as the requirements for Class EA performance according to ISO/IEC 11801 and Cat. 6A performance according to TIA 568.2-D. EN 50173-1 IEC 60603-7: Electrical Characteristics of Telecommunication Outlets ISO/IEC 11801, plastic: PC, UL 94 V-0, connection module, RJ45 type connection, and Mounting plate are included with this jack. This jack meets ISO/IEC 11801, EN 50173, capacitive and inductive compensation, 3P and UL certification, and TIA 568.2-D in the complete permissible range. It has maximum dependability due to a specific contact design with no internal transmission points.
