Standard
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Color
Yellow
Blue
Grey
Conductor
Bare solid copper
Insulation
HDPE, overall Ø 0.92±0.02 mm
Twisting
2 wires to the pair
Cable Lay-Up
4 pairs to the core with cross separator
Pair Screen
Non
Overall Screen
Non
Sheath
PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Fire Rating
Flame retardant- PVC
Cable Designation
U/UTP Cat.6 250MHz
Packaging
Drum 305 m
Outer Diameter
5.8±0.3mm
Weight
13.0kg nominal
Pulling Pressure
11Kg nominal
Segregation Class
B
Tensile Strength
> 16.5N/mm²
Bending Radius
≥ 25 mm during operation (without load)
≥ 50 mm during installation (with load)
Temperature ange
During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C

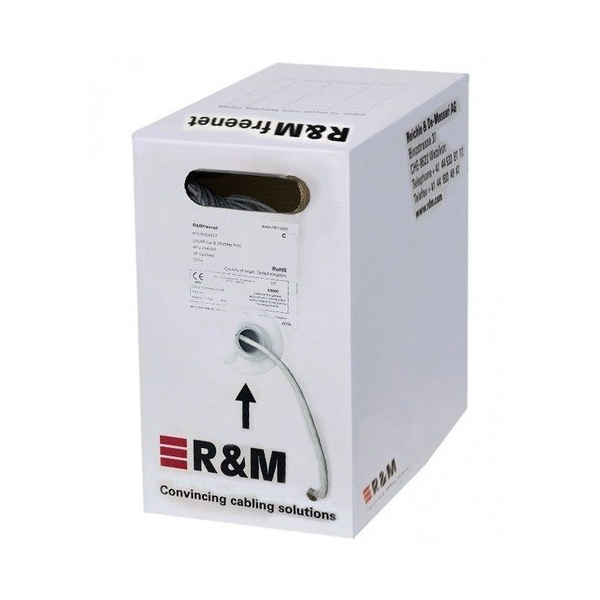

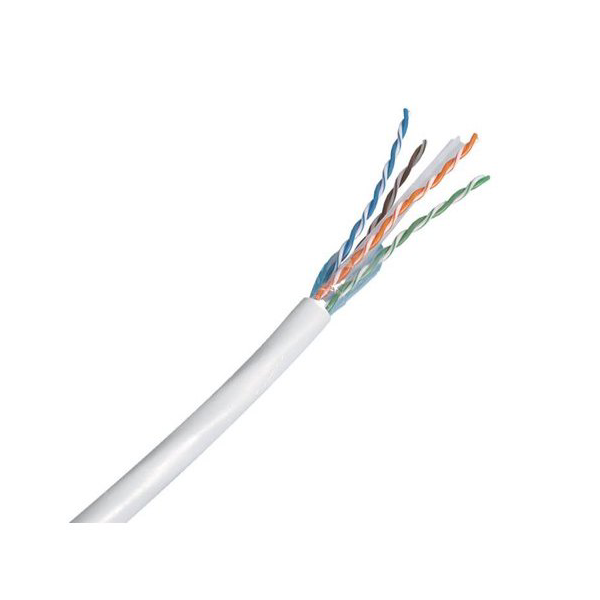

R&M Cat 6 U/UTP Cable Box includes bare solid copper conductor, HDPE, overall 0.920.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It conforms to ISO/IEC 11801 2nd ed., EN 50173-1, ANSI/TIA-568-C.2, IEC 61156-5 2nd ed., IEC 61156-7, and EN 50288-6-1 standards. This Cable Box also has a U/UTP Cat.6 250MHz Cable designation, a 5.80.3mm outside diameter, a 13.0kg nominal/305m weight, an 11Kg nominal pulling pressure, and a B segregation class with a tensile strength of more than 16.5N/mm2.
