Conductor
Bare solid copper wire AWG23
Insulation
Polyethylene ≤ Ø 1.22 mm
Twisting
2 wires to the pair
Cable Lay-Up
4 paires to the core with cross separator
Pair Screen
Non
Overall Screen
Non
Sheath
LSZH, gray
Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
IEEE 802.3af-2002: POE; IEEE 802.3at: POE+
Standards
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2
IEC 61156-5 2nd ed.; EN 50288-6-1
Fire Rating
LSZH
IEC 60332-1; IEC 60754-2; IEC 61034
Cable Designation
Cat6A U/UTP
Packaging
Box 305 m
Outer Diameter
Nominal 7.0 +/- 0.8 mm
Weight
58 kg / km
Pulling Pressure
1090 MJ / km
Segregation Class
B
Tensile Strength
100 N
Bending Radius
≥ 35 mm during operation (without load)
≥ 55 mm during installation (with load)
Temperature ange
During operation: -20°C…+ 60°C
During installation: 0°C…+ 50°C

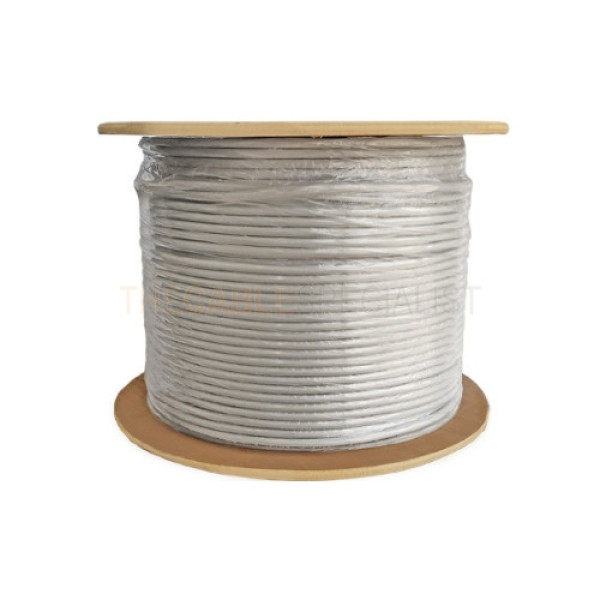

R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Cable is made of bare solid copper wire AWG23. It is insulated with Polyethylene 1.22 mm. It allows the pair to twist two wires. R&M R195718 CAT6A U/UTP 4P 500MHz 23AWG LSZH Gray 305m Cable has four pairs to the core and a cross separator. It lacks a pairing screen and an overall screen. The LSZ cable has a gray sheath.
