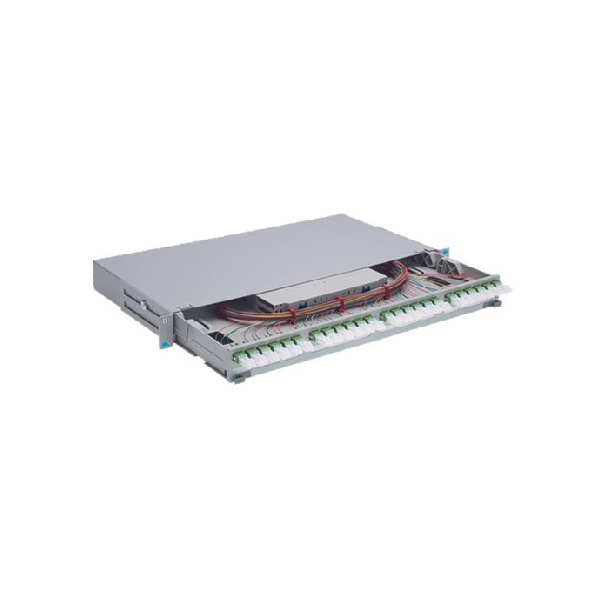

The R&M 48 Port Fiber Rack Mount LIU is loaded with Singlemode 24x LC-PC DX Adapters and splice trays. The Front panel with staggered arrangement of adapters. 19-inch housing has a Standard UL Listed IEC 60297-3: 19-inch (482.6 mm) rack. Adapter and connector in acc. with IEC 61754-15 and EN 186270. The Pigtails in ACC. are rated with color code DIN VDE 0888. The Protection class of these Rackmode IP 20 and the Number of connectors is 6 This Capacity (ports) is 12 one-height units. The splice Connector type (A) LC-Duplex The connector type is Lever- / frame-coding (A) Color The Sleeve material is ceramic and the adapter fastening method is an end cap. The Conductor type used is semi-tight buffer dry. this 19-inch 1U Rack Mount Fiber LIU is a Loaded duplex adapter (SM/MM) and the best part is its easily removable Top plate with push buttons. It is available in 6F/12F/24F/48F formations and LC-PC SM; SC-PC SM; LC-PC MM; and SC-PC MM connector combinations depending on the model.
