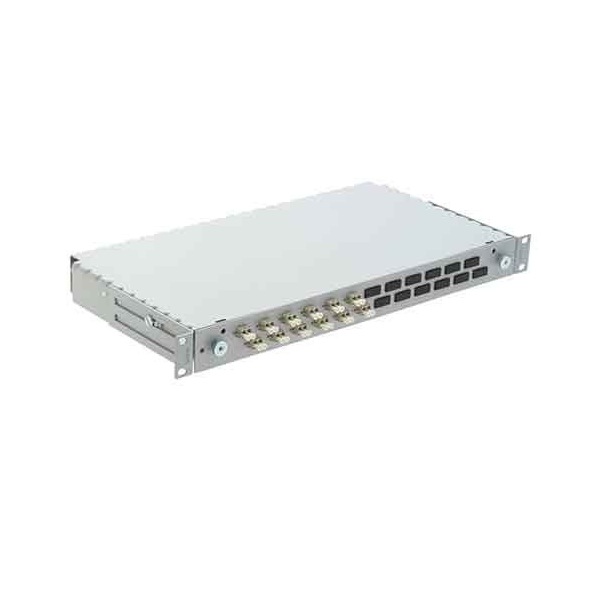

R&M 12 port Fiber Rack Mount LIU with Singlemode 6xLCPC Dx adapters and Splice Trays. The front panel features a staggered array of adapters. A 19-inch rack is standard UL-certified IEC 60297-3: 19-inch (482.6 mm) housing. IEC 61754-15 and EN 186270 compliant adapter and connection. Pigtails in accordance with DIN VDE 0888 color code. The IP protection level is IP 20 and there are 6 connections. This unit has a capacity of 12 one-height units. The LC-Duplex splice connector (A) The connection is of the lever-/frame-coding (A) kind. The material of the sleeve is ceramic, and the adapter attaching mechanism is an end cap. Semi-tight buffer dry conductors are employed. Depending on the model, it is available in 6F/12F/24F/48F formations and LC-PC SM; SC-PC SM; LC-PC MM; and SC-PC MM connector combinations.
