Capacity
10KVA/9.0KW
12v 9Ah
Input Voltage
Single-phase 120Vac-288Vac
Output Voltage
220Vac
Frequency (Battery Mode)
Frequency precision 0.25%
Noise Level
<55dB
Battery
Battery brand: Always/Star/Equivalent
Battery Capacity: 12v 9Ah
Battery Qty: 16 units
Battery Cabinet: Internal Battery
Alarm
Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection
Others
Charging capability: >6h for 90% re-charging of standard model
Rectifier Type: IGBT rectifier
Voltage Range
Single-phase 120Vac-288Vac
Frequency
45Hz-65Hz
Type of Wave
Sine Wave, THD<3%
Backup Time
Standard back up (15-30) min IT Load
Rated power
10KVA/9.0KW
Warranty
01 Year Warranty

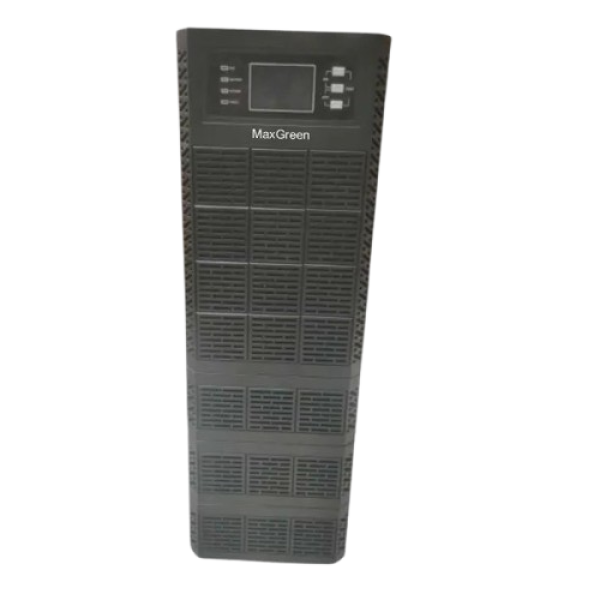

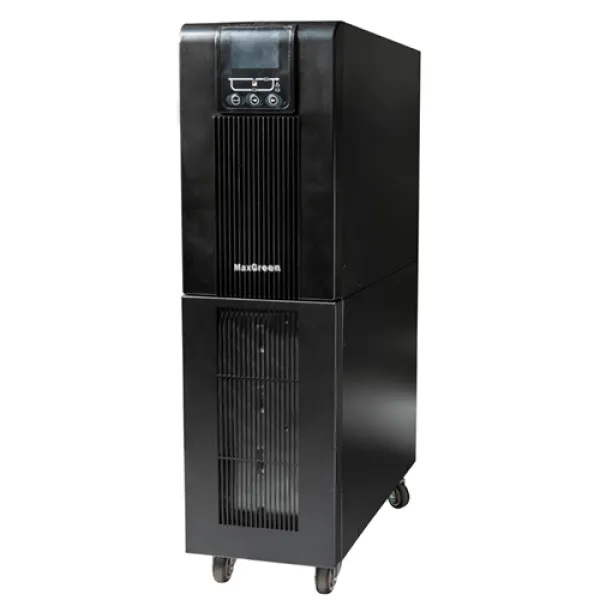

MaxGreen MGO-W10KSE 10KVA Standard Backup UPS is designed with a rated power of 10KVA/9.0KW that is capable of delivering a reliable and stable power supply to connected devices, ensuring uninterrupted operation even in the event of power failures or voltage fluctuations. This UPS is equipped with 16 units of a 12V 9Ah battery, which provides a backup time of >6 hours for 90% of the ordinary model's recharge, making it an ideal choice for critical applications that require extended backup power. The system status is communicated through LED signaling and an LCD panel with several menus, allowing users to monitor the UPS's performance and make necessary adjustments.
