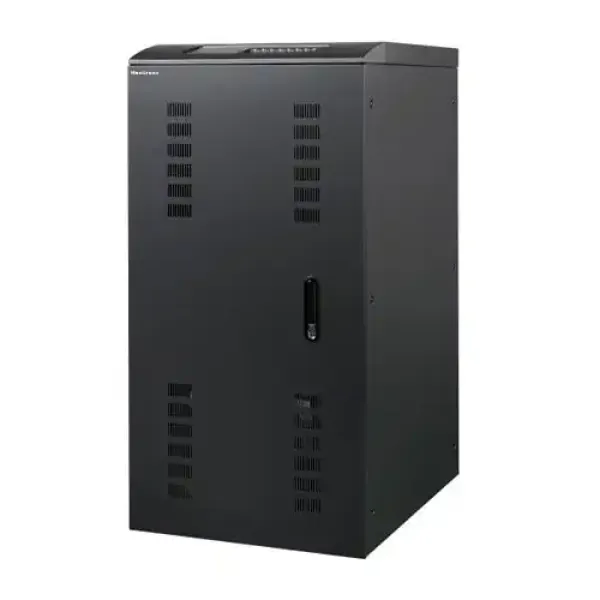

MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS

Key Features
  • IGBT inverter and output isolation transformer
  • Online double conversion
  • Wide input voltage range
  • RS232/RS485 communication port
Call for Price
Call for Best Price 01313716989 / 01709995469

Technical specifications

Capacity

20 KVA
Phase: 3φ4W+PE
System voltage (VDC): 384
Crest factor: >3:1

Load Capacity

Overload: 125% load keep 10min,150% load keep 30s

Input Voltage

380±25%

Output Voltage

380/400/415±1%

Noise Level

<60(within 1 meter)

Alarm

Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Display Type

General LCD

Voltage Range

380±25%

Frequency

45~66 Automatically select synchronization range according to grid frequency

Voltage Range

380/400/415±1%, Isolation transformer output

Power Factor

0.8/0.9

Type of Wave

Sine Wave,THD<3%

Backup Time

depends on customer configuration

Warranty

1 year warranty

Description :

MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS

MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS comes with a System voltage (VDC) of 384. It can keep 125% load for 10 min and keep 150% load 30s. The input voltage is 380±25% and the output voltage is 380/400/415±1%. It has also a General LCD Display.
