Display Format Native Resolution
4K
Aspect Ratio
16:9
Picture Response Time
6
Refresh Frequency
60
Pixel Pitch
3840 x 2160
Display Colors
1.07 billion
Brightness (typical)
400
Contrast Ratio
5000:1
Viewing Angle
178° / 178°
Life Time
50000
Others
Surface Glass: 3.2 mm Anti-Glare Glass
Surface Haze: 25%Haze
Glass Bonding Method: Zero Lamination
Display Area: 1428.48mmx803.52mm
Working Duration: 7 × 16H
Transmittance: 88% ± 3
Touch Point
45
Touch Response Time
<5
Surface Hardness
9H
Interpolation Resolution
32768 × 32768
Others
Minimum Touch Object: ≥ 2 mm
Touch Precision: ± 1 mm (≥ 90% touching area)
System Version
Android 13.0
CPU
Quad-core Cortex-A76 × 4（2.4GHz）and quad-core Cortex-A55 × 4（1.8GHz)
GPU
Mali-G610 MC4
RAM
8GB
ROM
128GB
Others
HDCP Version: 2.3
HDMI
3x HDMI 2.0 Input
1x HDMI 2.0 Output
VGA
1x VGA
PC Audio In
1x 3.5mm Audio
1x SPDIF
Audio out
1x 3.5mm Audio
2x12W 2.0 Stereo Speaker
LAN
1x RJ45
USB
USB 3.0 × 4
USB 2.0 × 1
Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
RS232
1x RS232
Active Screen Size
86
Dimensions
2197 mm × 284 mm × 1376mm
Weight
65.13 kg
Power
100 to 240 VAC, 50/60 Hz
Standby Power
0.5 W
Power Requirements
< 107W
Others
Camera: Pixel 48MP for Photos & 8 MP for Video
Camera Function: Support intelligent switching between Android system, OPS, and PC.
Field Angle: 120°(diagonal), 110°(horizontal), 75°(vertical)
Distortion: ≤2.5%
Camera Resolution Ratio: Up to 4K
Microphone: Omni-directional 8-array layout
Mic Function: Echo reduction and smart noise-cancellation
Voice Distance: 12 m
Sampling Rate: 32 K
Mic Sampling Rate: 16 bit
Loudspeaker: Built-in 2 ×20 W+25W loudspeaker;
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC: Support screen mirroring by Android phones
Light Sensor: Yes
Warranty
3 Years

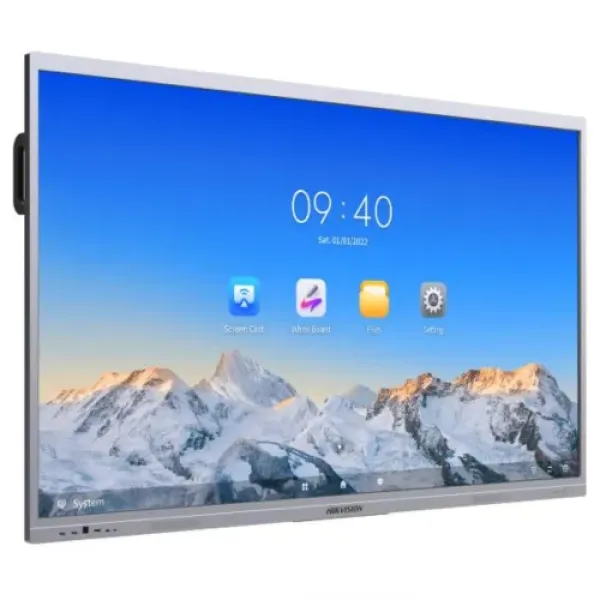

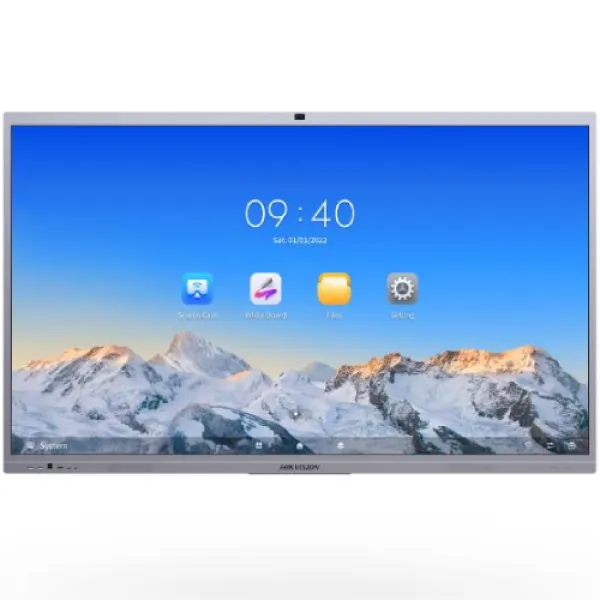

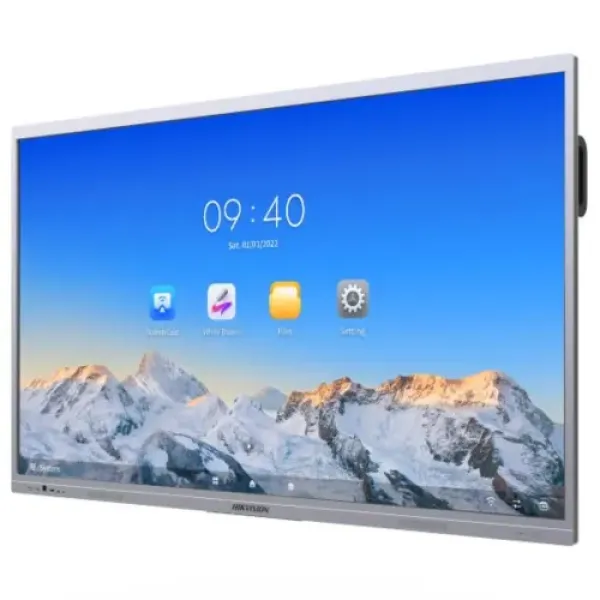

The Hikvision DS-D5C86RB-B is an 86-inch 4K UHD Interactive Flat Panel Display designed for various applications, including corporate and educational settings. It features a resolution of 3840 x 2160, providing sharp and vibrant visuals. The display supports dual systems of Android and Windows (optional with OPS), offering flexibility and ease of use. It includes an 8MP AI camera and an 8-array microphone, which support intelligent switching between Android, OPS, and PC systems, making it ideal for video conferencing. The panel offers up to 50-point multi-touch control, ensuring a smooth and responsive writing experience. It also includes built-in speakers, Bluetooth 5.1, and various connectivity options such as HDMI, VGA, DP, and USB ports. The anti-glare and anti-blocking design, along with intelligent temperature control and blue light protection, enhance user comfort and safety Overall, the Hikvision DS-D5C86RB-B combines advanced features and robust performance, making it a great choice for interactive and engaging displays.
