Image Sensor
2MP CMOS image sensor
Effective Pixels
1920 × 1080
IR Distance
up to 20 m IR range
Type
Horizontal Field Of View: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Focal Length
3.6 mm, 2.8 mm, 6 mm fixed lens
Angle of View
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Dimension
Φ 89.9 mm × 70.1 mm (3.54" × 2.76")
Weight
Approx. 280 g (0.62 lb.)
Interface
Video Output: 1 HD analog output
Switch Button: TVI/AHD/CVI/CVBS
Power
12 VDC ±15%

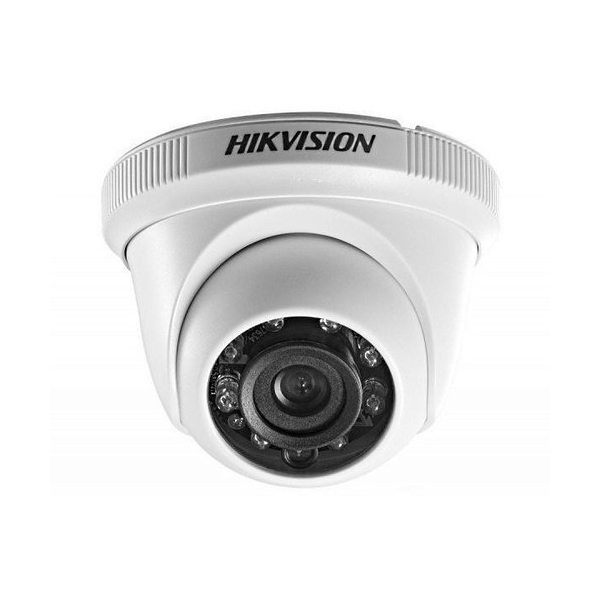

The DS-2CE56D0T- IP/ECO contains a CMOS sensor with a resolution of up to 2.0 megapixels, a 3.6 mm, 2.8 mm, and a 6 mm fixed focal lens. It features an IR range of up to 20 meters and a dual streaming function. This round-shaped technology features 3.6 mm, 2.8 mm, and 6 mm fixed focal lenses, as well as Minimum Illumination (Lux):0.01 Lux (F1.2, AGC ON), and 0 Lux with IR with a wired connection. Static IP addresses are also supported by the DS-2CE56D0T- IP/ECO. The supported operating systems are Android and iPhone OS.
