Image Sensor
1 MP CMOS image sensor
Effective Pixels
1296 (H) × 732 (V)
IR Distance
Up to 20 m
Others
Electronic Shutter Speed: 1/25 (1/30) s to 1/50,000 s
Minimum Illumination: Color: 0.1 Lux@(F1.2, AGC ON), 0 Lux with IR
S/N Ratio: >62 dB
Type
2.8 mm, 3.6 mm, 6 mm optional
Focal Length
Fixed
Angle of View
70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm)
Others
Mount Type: M12
Dimension
Φ 89.9 × 70.1 mm (3.54" × 2.76")
Weight
280 g (0.62 lb.)
Power
Power Supply: 12 V DC±15%
Power Consumption: Max. 4 W
Warranty
01-year warranty

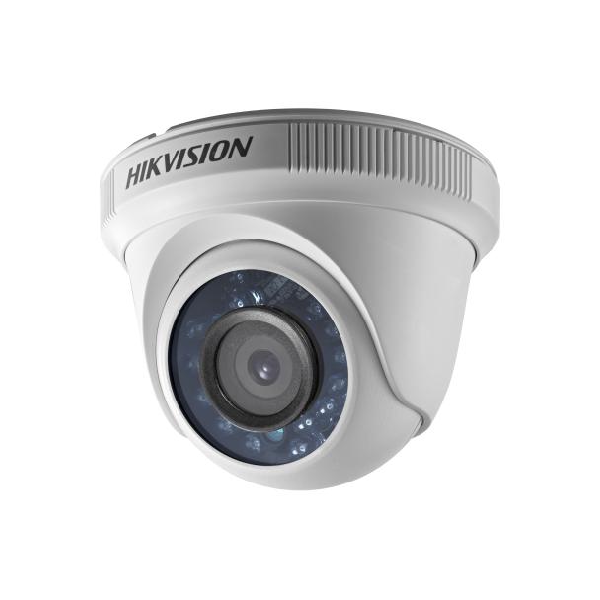

The Hikvision DS-2CE56C0T-IRF Turret Camera has a 1.0-megapixel high-performance CMOS sensor. It has an optional 2.8 mm, 3.6 mm, and 6 mm lens. It has a field of vision of up to 70.9°(3.6 mm), 92°(2.8 mm), and 56.7°(6 mm). It has a 720P analog HD output. It supports genuine Day/Night. It features DNR and Smart IR support. It has an IR range of up to 20m. It is weatherproof to IP66 standards. It has four switchable signals: TVI/AHD/CVI/CVBS. It has internal synchronization and a S/N ratio of more than 62 dB.
