Integrated network management ports
10GE/ GE RJ45 Management Ports
USB
1/1
Storage
2x 1 TB NVMe SSD
Power supplies
100–240V AC, 50/60 Hz
765 W / 1181 W
Operating Temperature
32°F to 104°F (0°C to 40°C)
Weight
45.3 lbs (20.6 kg)
Dimensions (H x W x D)
3.5 x 17.25 x 21.1
Others
IPS Throughput: 55 Gbps
NGFW Throughput: 65 Gbps

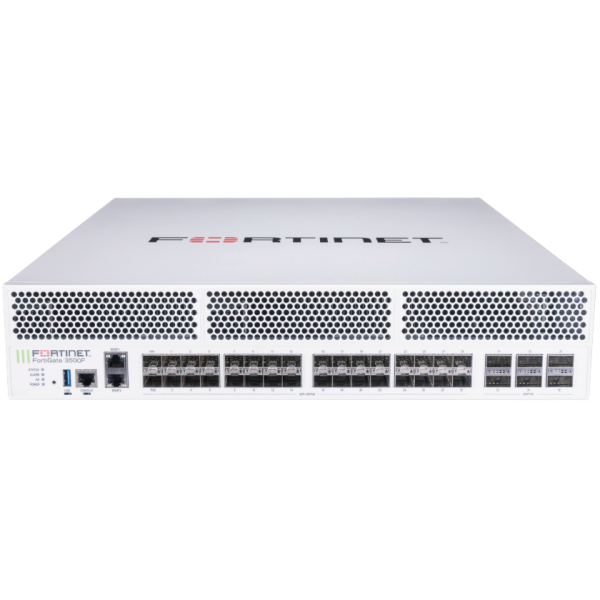

The Fortinet FG-3501F Firewall is a high-performance next-generation firewall (NGFW) designed for large enterprises and service providers. It offers advanced threat protection and secure SD-WAN capabilities, making it ideal for securing networks at any scale. The FG-3501F features multiple high-speed interfaces, including 6 x 100GE/40GE QSFP28 slots, 32 x 25GE/10GE SFP28 slots, and 2 x 10GE RJ45 management ports. It also includes SPU NP7 and CP9 hardware acceleration, 4TB onboard SSD storage, and 2 AC power supplies. Powered by Fortinet's Security Processing Unit (SPU) technology, the FG-3501F delivers industry-leading performance with a firewall throughput of up to 595 Gbps, IPS throughput of 72 Gbps, and threat protection throughput of 63 Gbps.
