Processor

Intel® Xeon® Gold 6430 (60MB Cache 32 cores, 64 threads, 2.1 GHz to 3.4 GHz Turbo, 270W) supportability up to 56 Cores Processor

Motherboard

Intel C741

RAM

64 GB: 4 x 16 GB, DDR5, 4800 MT/s,
supportability up to 8TB; 32 Slots

Storage

BOOT DRIVES: Dell Ultra-Speed Drive Duo M.2 NVME SSD x8 LP PCIe Card with 1x 512GB Class 40 Solid State Drive
DRIVES: 2 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class

Graphics Card

NVIDIA RTX A5500, 24 GB GDDR6, 4 DP, Supportability up to 48GB Graphics

Power Supply

Dual Hot-plug Redundant Power Supply (1+1) 1100W

Network & Wireless Connectivity

RJ45 Ethernet port, 1GBE
RJ45 Ethernet port, 10GBE

Operating System

Windows 11 Pro for Workstations (6 cores plus), English

Others

7 Slots in riser cards with Dual CPUs
Single CPU has 1x Gen 4 x16 (FH/FL) slot, 1x Gen 5 x16 (FH/FL) slot, 1x Gen 4 x16 low profile (FL) slot (Reserved primarily for NVMe boot with Dell Ultra-Speed Duo x8 LP PCIe card
Dual CPU has above slots plus 1x Gen 5 x16 double width slot, 2x Gen 4 x8 FH/HL slots, 1 Gen 4 x16 low profile (FL) slot
Up to 2x dual or single width graphics cards with dual CPUs.

Keyboard

USB Keyboard

Mouse

USB Mouse

External I/O Ports

Front Ports:
iDRAC Direct port (1x Micro USB 2.0)
USB 2.0 port
VGA Port intended for IDRAC use

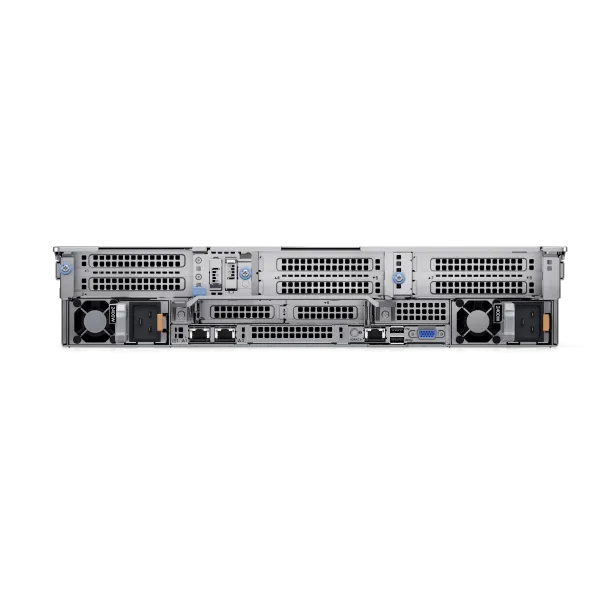

Rear Ports:
USB 2.0 port
USB 3.0 Gen1 port
iDRAC Enterprise Dedicated Network connector
VGA port intended for IDRAC use
(2) RJ45 Ethernet ports 1GbE LOM standard and one of three OCP3 NIC cards options in dedicated slot)

Warranty

3 Years
