Processor
Intel® Xeon® Silver 4514Y 2G, 16C/32T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4400
Motherboard
R760XA Motherboard
Memory
4x 32GB RDIMM, 5600MT/s, Dual Rank
Hard Disk
3x 1.92TB SSD SAS, RI, up to 24Gbps 512e 2.5in Hot-Plug, AG Drive
2x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
Video Memory
GPU Acceleration Cards NVIDIA L4, PCIe, 72W, 24GB Passive, Single Wide Full Height GPU
GPU/FPGA/Acceleration Cables No Cables Required, No GPU Blanks, Gantry Fan
RAID Controller
RAID Configuration C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
RAID/Internal Storage Controllers PERC H755 with rear load Brackets
Network
Broadcom 57414 Dual Port 10/25GbE SFP28, OCP NIC 3.0
Embedded System Management
iDRAC9, Enterprise 16G
OpenManage Enterprise Advanced
Fans
Gen 2 Fan
Chasis
2.5" Chassis with up to 8 SAS/SATA Drives, Front PERC 11
Power Supply and Cable
Dual, Hot-Plug,Power Supply Fault Tolerant Redundant (1+1), 2400W, Mixed Mode
Others
Processor Thermal Config Heatsink for 2 CPU Configuration with OCP
Power Cords Jumper Cord - C19/C20, 2.5M, 250V, 16A (TW and APCC countries except ANZ)
PCIe Riser Riser Config 0, 4x16 FH Slots (Gen5), 4x16 FH DW GPU Capable Slots (Gen5)
SFP+ SR Optic, 10GbE, for all SFP+ ports except high temp validation warning cards
PowerEdge 2U Standard Bezel
ReadyRails Sliding Rails With Strain Relief Bar
Trusted Platform Module 2.0 V3
Warranty
3 years warranty

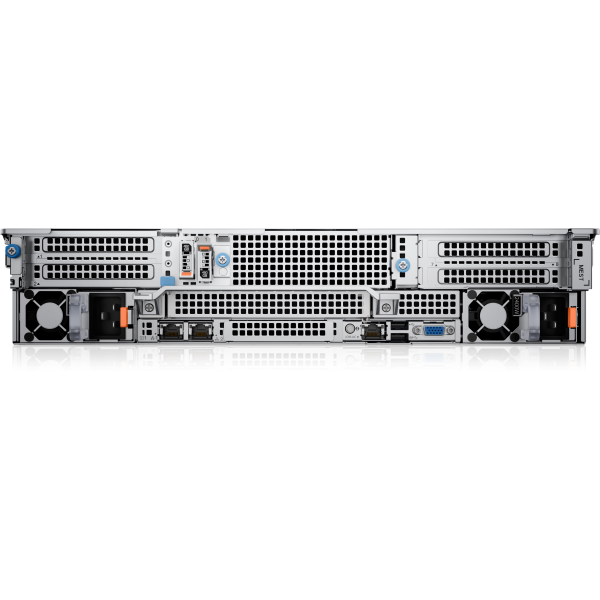

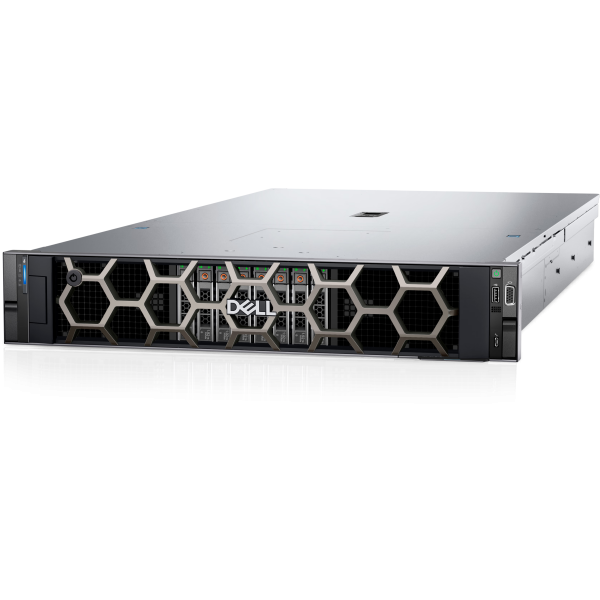

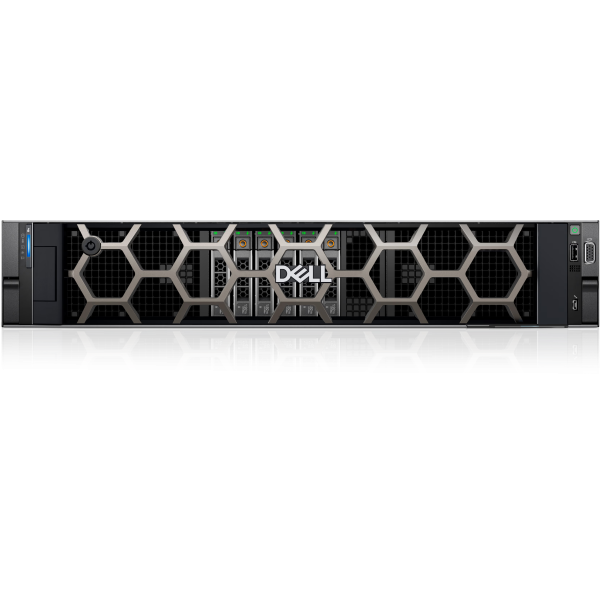

The Dell PowerEdge R760xa is a high-performance rack server built to handle demanding processing activities and data-intensive applications. It boasts a powerful Intel® Xeon® Silver 4514Y CPU with 16 cores and 32 threads operating at 2GHz, which should provide significant processing power and efficiency. 128GB of DDR5-5600MT/s RDIMMs strengthen the server's memory capacity, guaranteeing seamless multitasking and quick data access. Three 1.92TB SSD SAS drives with up to 24Gbps of performance and two 480GB SSD SATA drives that are all hot-pluggable for easy maintenance and expansion emphasize the storage versatility of this setup. Mixed drive types are supported by the server's RAID configuration, which is controlled by a PERC H755 controller with rear load brackets, improving data management flexibility. With a front PERC 11 controller, the chassis can accommodate up to eight 2.5" SAS/SATA drives, giving users plenty of options for expanding their storage. The GPU server is equipped with a Gen 2 fan system and dual 2400W hot-plug, power supply fault-tolerant redundant units in a 1+1 configuration to provide excellent performance even in the event of component failures. With two SFP+ SR Optic modules for 10GbE connectivity and a Broadcom 57414 Dual Port 10/25GbE SFP28 OCP NIC 3.0 adapter, networking capabilities are strong. In addition, the server has two 24-GB-memory NVIDIA L4 PCIe GPUs, which improve its acceleration performance for workloads requiring a GPU.
