Image Sensor
1/2.7”2Megapixel progressive CMOS
Effective Pixels
1920 (H) × 1080 (V)
IR Distance
30 m (98.43 ft)
Type
Fixed
Focal Length
2.8 mm
3.6 mm
Aperture
F1.6 (for both)
Angle of View
2.8 mm :
Horizonal: 110.0°
Vertical: 59.0°
Diagonal: 132.0°
3.6 mm :
Horizonal: 91.0°
Vertical: 48.0°
Diagonal: 109.0°
Dimension
100.9 mm × Φ109.9 mm (4.0″ × Φ4.3″)
Weight
Net Weight: 0.39 kg (0.9 lb)
Gross Weight: 0.56 kg (1.2 lb)
Power
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: < 5.9W

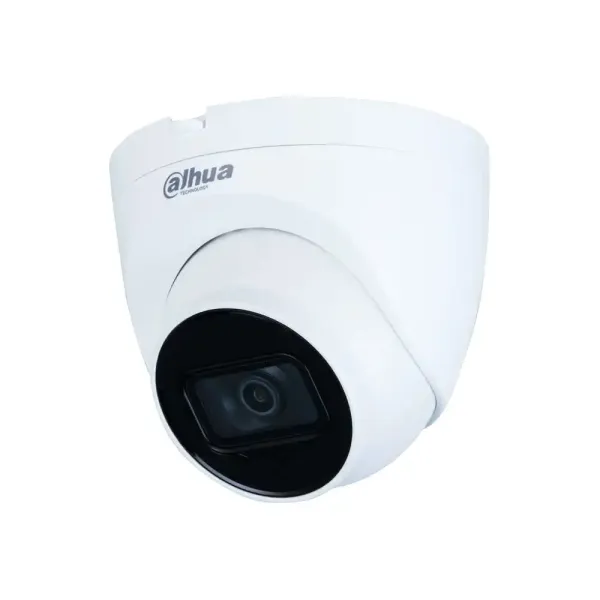

Dahua IPC-HDW2230TP-AS IR Eyeball Camera comes with a 2MP, 1/2.7" CMOS image sensor, low illuminance, high image definition, Outputs 2MP (1920—1080)@25/30 fps · H.265 codec, high compression ration, ultra-low bit rate. This IR Camera has a built-in IR LED, and a max IR distance: of 30 m. It is also featured with ROI, SMART H.264/H.265, and flexible coding, applicable to various bandwidth and storage environments.
