Image Sensor
1/3” 4Megapixel progresive CMOS
Effective Pixels
2688(H) x1520(V)
IR Distance
Distance up to 30m(98ft)
Others
RAM/ROM 512MB/32MB
S/N Ratio More than50dB
Type
Fixed
Focal Length
2.8 mm (3.6 mm optional)
Aperture
F2.0/F2.0
Angle of View
H:104°/87°, V:57°/48°
Others
Focus Control --Fixed
Mount Type - Board-in
Dimension
Φ108mm×84.9mm(4.25''x3.15'')
Weight
Net Weight 0.23Kg(0.51lb)
Gross Weight 0.387Kg(0.85lb)
Power
Power Supply DC12V, PoE (IEEE 802.3af)(Class 0)
Power Consumption < 5.5W

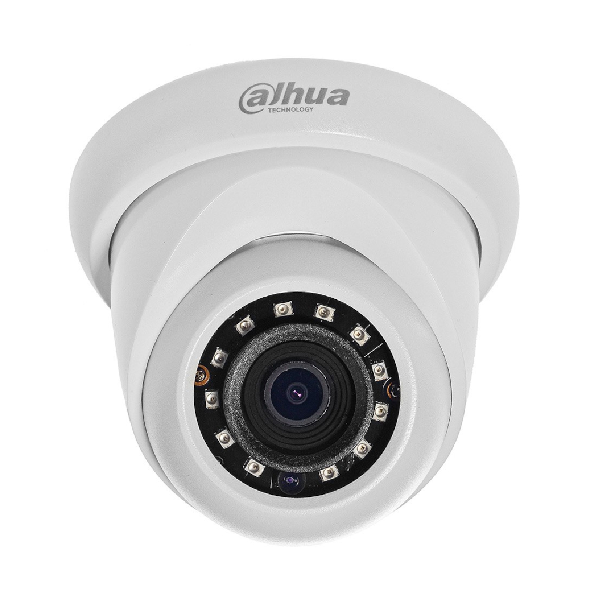

Dahua IPC-HDW1431S 4 Megapixel WDR IR Eyeball Network Camera delivers 4MP progressive CMOS resolution with a 2.8mm/3.6mm(optional). The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression and optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.
