Image Sensor
1/3” 2Megapixel progressive CMOS sensor
Effective Pixels
2560(H) x1440(V)
IR Distance
15 m (49.21 ft) (Warm light)
Others
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
Minimum Illumination: 0.008 [email protected]
S/N Ratio: >56dB
IR On/Off Control: Auto/ Manual
IR LEDs: 1 (Warm light)
Type
Fixed
Focal Length
2.8 mm
3.6 mm
Aperture
F1.6
Angle of View
2.8 mm: Horizontal: 95°; Vertical: 52°; Diagonal: 114°
3.6 mm: Horizontal: 78°; Vertical: 41°; Diagonal: 94°
Others
Focus Control: Fixed
Close Focus Distance: 2.8 mm: 0.8 m (2.62 ft); 3.6 mm: 1.1 m (3.61 ft)
Dimension
85.5 mm × Φ109 mm (3.37" × Φ4.29"
Weight
0.24Kg(0.5lb)
Interface
1 RJ-45 (10/100Base-T)
Built-in mic
Built-in warm light
Power
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption:
Basic: 1.4 W (12 VDC); 2.2 W (PoE) Max. (H.265+IR intensity+ICR): 4.2 W (12 VDC); 5.3 W (PoE)
Others
Casing: Metal+Plastic
Operating Conditions: -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Strorage Conditions: -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress Protection: IP67
Warranty
1 Year Warranty

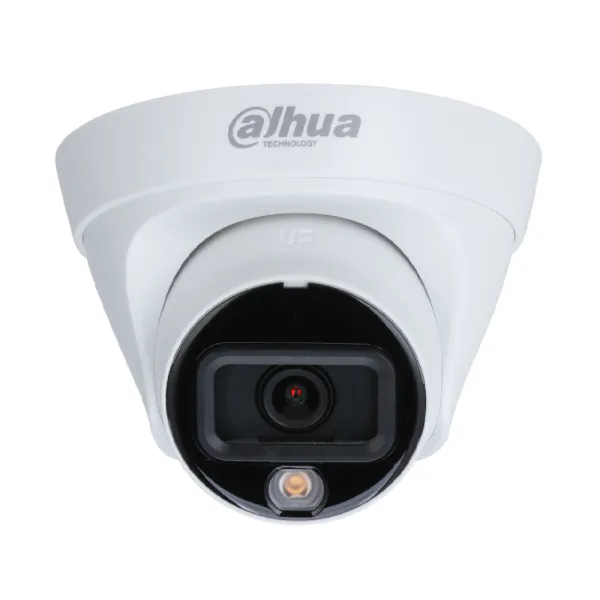

The new Dahua DH-IPC-HDW1439T1P-A-LED-S4 4MP Full-color Eyeball IP Camera has a 2.8mm and 3.6mm fixed-focal lens with an F1.6 maximum aperture. The Dahua Eyeball IP camera has a 1.3" (4 megapixels) progressive CMOS sensor and 2560 (H) x 1440 (V) effective pixels. It has a mainstream frame rate of 2560 x 1440 at 25 or 30 fps. The Dahua DH-IPC-HDW1439T1P-A-LED-S4 4MP full-color eyeball IP camera features 16x digital zoom. It supports DC 12V PoE power and also supports IP67-rated water and dust protection.
