Type
Device Type: Switch – 8 ports – L3 – managed
Enclosure Type: Rack-mountable
Sub type: Gigabit Ethernet
Network Standard
IEEE 802.1D
IEEE 802.1s
IEEE 802.1w
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Number of VLANs: 4094
Access Method
16K
Data Transmission Rate
Throughput: 16000 Mpps
MAC address table: 16000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
MAC Address Table
16K
Environment
Storage temperature: -13° to 158°F (-25° to 70°C)
Operating humidity: 10% to 90%, relative, noncondensing
Storage humidity: 10% to 90%, relative, noncondensing
Interface
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2
USB 2.0 ports quantity: 1
Power Supply
Power Supply Type: Internal
Dimensions (L x W x H)
268 x 272 x 44 mm (10.56 x 10.71 x 1.73 in)
Weight
1.7 kg
Warranty
01 Year Warranty

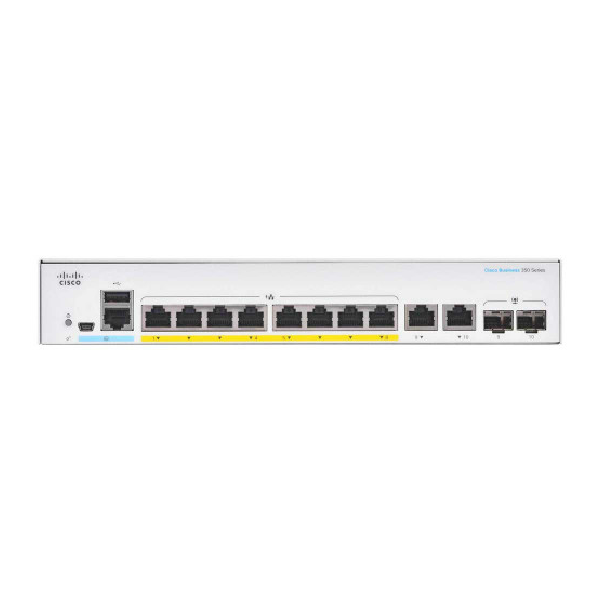

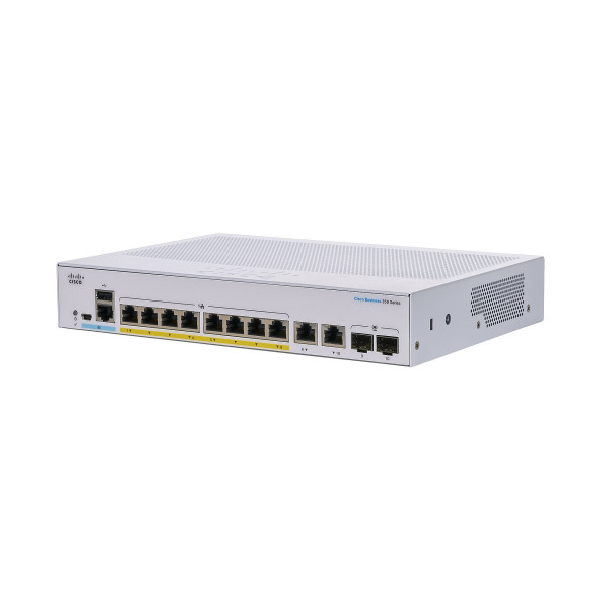

The Cisco CBS350 8-port GE PoE+ Gigabit Managed Switch is designed to deliver high-performance networking for small to medium-sized businesses. It features 8 10/100/1000 Mbps Gigabit Ethernet ports and 2 x 1 GbE/SFP combo ports that provide high-speed connectivity for data-intensive applications. The switch comes equipped with 8 PoE+ ports, with a total budget of 67 Watts, that allow for the easy deployment of PoE-enabled devices such as IP phones, wireless access points, and IP cameras.
