Type
Managed
Port
24x Gigabit Ethernet & 4x SFP
Network Standard
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
Data Transmission Rate
Forwarding Rate: 41.66 Mpps
MAC Address Table
8K
Power Supply
AC 120/230 V (50/60 Hz)
Dimensions (L x W x H)
445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
Weight
2.63 kg (5.80 lb)
Warranty
01 Year Warranty

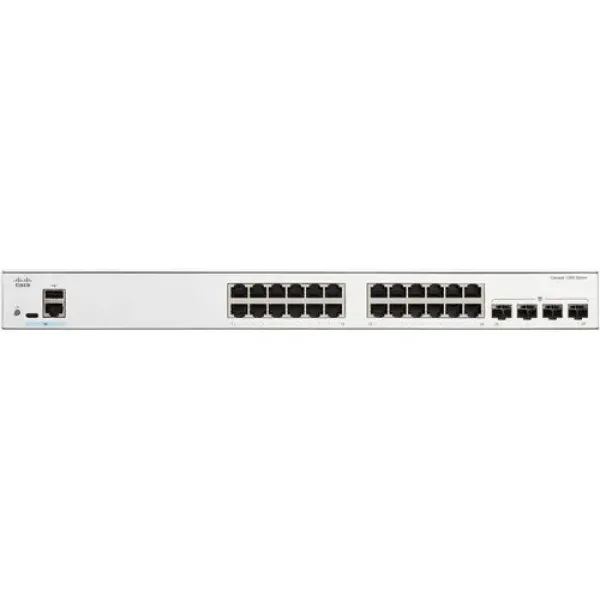

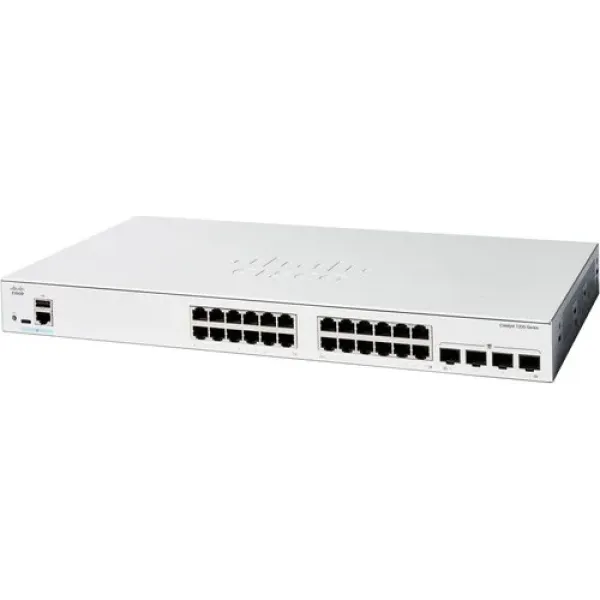

The Cisco Catalyst C1200-24T-4G is a high-performance 24-port managed network switch, designed to provide reliable and efficient network connectivity for businesses of all sizes. Featuring 24 Gigabit Ethernet ports and 4 Gigabit SFP ports, Cisco Catalyst C1200-24T-4G switch supports seamless network expansion and high-speed data transfers. With a switching capacity of 56 Gbps and a forwarding rate of 41.66 Mpps, it ensures optimal performance for demanding applications. Powered by a dual-core ARM processor running at 1.4 GHz, along with 1 GB of DDR4 RAM and 512 MB of flash memory, the switch delivers robust processing power for Layer 3 network functionalities. The fanless design allows for silent operation, making it ideal for office environments, while its rack-mountable and desktop-compatible form factor provides installation flexibility. As part of the Cisco Catalyst 1200 series, this switch is engineered for high reliability, security, and scalability, ensuring a future-proof networking solution for growing enterprises.
