Type
PoE Network Switch
Port
24-port
Network Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Advanced Functions
BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Data Transmission Rate
Forwarding bandwidth: 6.4 Gbps
Switching bandwidth: 12.8 Gbps
Forwarding rate (64-byte L3 packets): 9.52 Mpps
MAC Address Table
MAC Address Table Size: 16000 entries
Environment
The operating temperature seal level is -5 to 50°C
-5 to 45 degrees Celsius at 5000 feet
-5 to 40 degrees Celsius at 10000 feet
The operating altitude is 10000 feet
The operating relative humidity is 5 to 90 percent at 40°C
Storage temperature is -25 to 70°C or -13 to 158 °F
Storage altitude is 15000 feet
Storage relative humidity is 5 to 95 percent at 65°C
Interface
24 x 10/100 (PoE+)
2 x combo Gigabit SFP/RJ-45 (uplink)
2 x SFP (mini-GBIC) (uplink)
1 x USB mini-B port
1 x USB-A port for storage and Bluetooth console
LED
Per-port status
link integrity
Disabled & Activity
System status
Power Supply
Power Unit: AC 120/230 V (50/60 Hz)
PoE Power: 195 W
Dimensions (L x W x H)
17.5 in x 13.8 in x 1.7 in
Weight
9.96 lbs
Warranty
01 Year Warranty

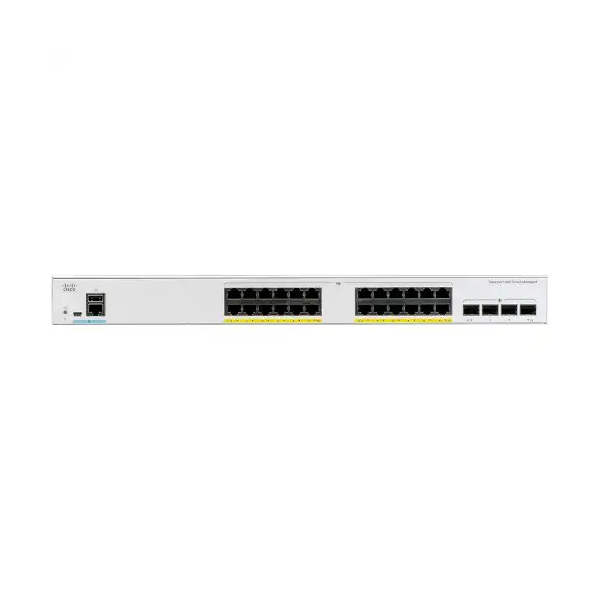

The Cisco Catalyst C1000FE-24P-4G-L 24-Port PoE Network Switch has 24 x 10/100 (PoE+) ports for connecting a variety of devices while providing power over Ethernet (PoE). This eliminates the need for separate power lines while also simplifying installation, making it perfect for IP phones, wireless access points, and other PoE-enabled devices. This network switch has 24 PoE+ ports and 2 x combo Gigabit SFP/RJ-45 uplink ports, allowing you to connect to other switches or devices through copper Ethernet or fiber optic cables.
