Port
16 100M TX ports
2 GE TX ports
2 100/1000M SFP ports
MAC Address Table
8K
Environment
Operating temperature/humidity: -10°C~50°C,10%-90% non-condensing
Storage temperature/humidity: -40°C~70°C,5%-95% non-condensing
Power Supply
18W
Dimensions (L x W x H)
440x210x44
Weight
1.35KG
Warranty
1 Year

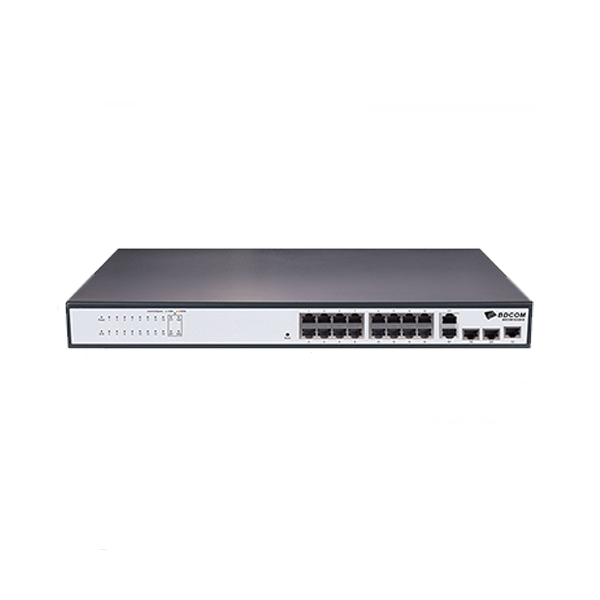

The BDCOM S2220-B is a controlled Ethernet switch with 16 ports and 4 Gigabit uplinks. It is intended for use in operators' IP MAN and business networks, and it has sophisticated ACL, QinQ, QoS, and other capabilities, as well as three-layer routing. It has a forwarding rate of 9.6Mpps. The BDCOM S2220-B Managed Switch features a buffer capacity of 4.1MB and a lightning protection level of 4KV. It features one RJ45 port for management and one RST button for reset. It includes an integrated AC power supply that can function with an input voltage of 100240V AC. The BDCOM S2220-B 16 Ports 1000M Managed Switch consumes 18W of electricity and is fanless. The BDCOM S2220-B Switch measures 440x210x44mm and fits into a normal 19-inch rack.
