Type
PoE-Switch
Port
Full-port 802.3af
Network Standard
IEEE802.3x, IEEE802.3af/at
Access Method
Power cord
Advanced Functions
Thunder-proof: 4KV
Switching capacity: 2G
POE port: 8FE
Uplink RJ45: 2FE
Buffer size: 1.25M
Total output BTU (1000BTU/H=293W): 443.69
Power: 130W
Transmission Method
Storage-and-forward, long-distance transmission
Data Transmission Rate
IEEE802.3x full duplex flow control and Back pressure half-duplex flow control
MAC Address Table
2K
Environment
Operating temperature/humidity: -10°C-50°C,10%-90% non-condensing
Storage temperature/humidity: -40° C-70°C ,5%-95% non-condensing
Interface
8 x 100M POE ports + 2 x 100M TX ports
Power Supply
Smart standard 48V PoE power supply
Dimensions (L x W x H)
(W×D×H)(mm): 220×150×44
Weight
1.160kg
Warranty
1 Year

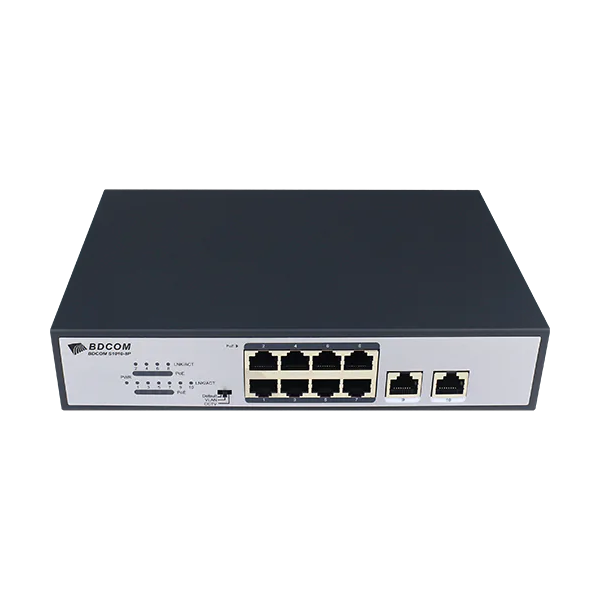

BDCOM S1010-8P-120 8-Port 100mbps The BDCOM S1000-P Series Multifunctional PoE Switch (120W) is a 100M multifunctional PoE switch with a big buffer memory. It is designed for wireless coverage in medium- and small-sized networks, as well as video surveillance. The BDCOM S1010-8P model meets the needs of networks of various sizes.
