Port
POE port: 4FE
Uplink RJ45: 2FE
MAC Address Table
1K
Environment
Operating temperature/humidity: -10° 0° ,10%-90% non-condensing C~5 C
Storage temperature/humidity: -40° 70° ,5%-95% non-condensing
Interface
Switching capacity: 1.2G
POE port: 4FE
Uplink RJ45: 2FE
Power Supply
65W
Dimensions (L x W x H)
140×76.7×28
Warranty
1 Year

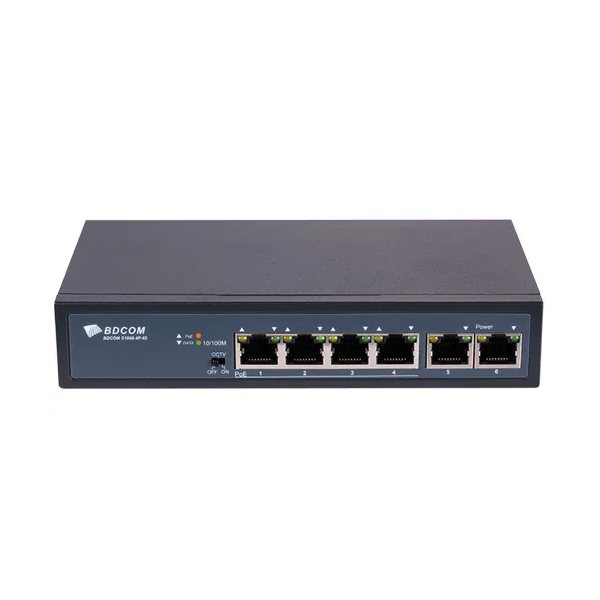

The BDCOM S1006-4P 4-Port PoE Switch supplies power and data to up to four PoE-enabled devices, such as IP cameras, VoIP phones, and wireless access points. It also features two 100M TX ports, which may be used to connect to other network devices or to uplink to a higher-level switch. The switch has an AC power source. The BDCOM S1006-4P 4-Port PoE Switch is compliant with 802.3af/at PoE standards and can offer up to 65W of total PoE power. The BDCOM S1006-4P PoE switch also has a functioning dip switch that lets you select between ordinary working mode and CCTV mode, isolating the 14 ports and extending the transmission distance to 250 meters.
