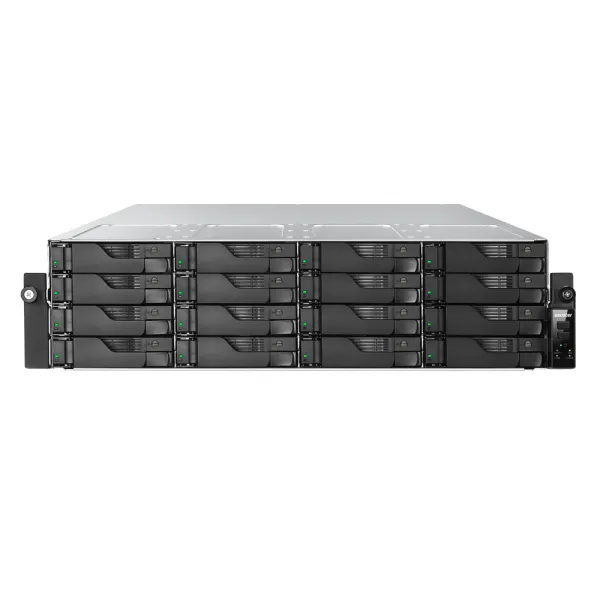

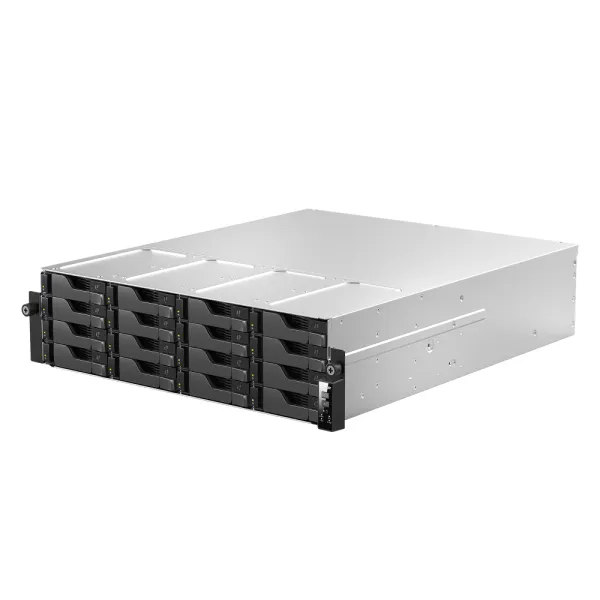

Asustor AS7216RDX Lockerstor 16R Pro Gen2 NAS Storage

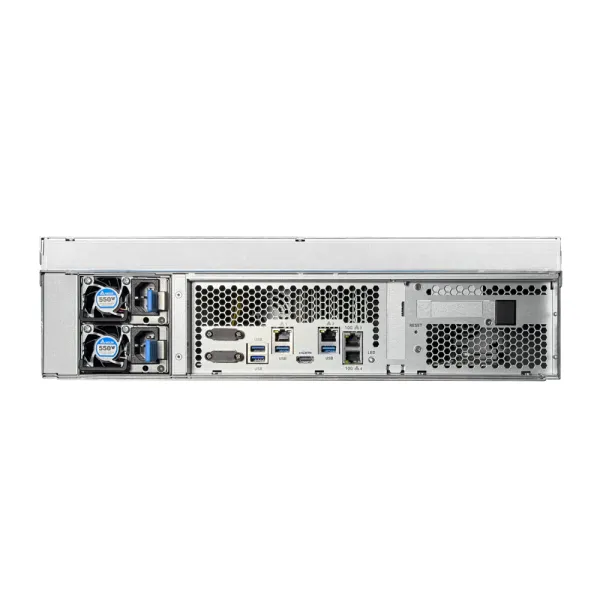

The Asustor AS7216RDX Lockerstor 16R Pro Gen2 NAS Storage is a high-performance network-attached storage solution designed for enterprise data management, virtualization, and centralized file storage. Powered by an AMD Ryzen 7 Pro 7745 processor, it features an octa-core architecture with speeds ranging from 3.8GHz to 5.3GHz. This 64-bit x64 NAS system includes 16GB ECC DDR5-4800 UDIMM memory, expandable up to 192GB across four memory slots. A 32GB SATA DOM provides dedicated flash storage for system operations. The Asustor Lockerstor 16R Pro Gen2 features 16 SATA III drive bays supporting 2.5-inch and 3.5-inch HDDs or SSDs. It supports up to 384TB of internal raw storage capacity with sixteen 24TB drives, depending on the RAID configuration. One M.2 PCIe NVMe slot supports SSD caching to improve storage access performance. With compatible expansion units, the system supports up to 44 drive bays and 1,056TB of maximum raw capacity, subject to drive and RAID configurations. For network connectivity, this Asustor NAS includes four Gigabit Ethernet ports and two 10 Gigabit Ethernet ports for high-speed data transfers and network flexibility. Four USB 3.2 Gen 1 Type-A ports support external peripherals and storage devices. Two PCIe Gen5 expansion slots, comprising one x8 and one x4 link, provide additional hardware expansion options. An HDMI output is available for service purposes only. The system features dual 550W power supply units and supports 100V to 240V AC input voltage. With enterprise-grade hardware, ECC memory, extensive storage capacity, and high-speed networking, the Asustor AS7216RDX Lockerstor 16R Pro Gen2 suits businesses requiring centralized storage, backup infrastructure, and scalable data management.
