Processor
Intel ATOM C3538 Quad Core Processor (2.1GHz) x64 64-bit
Memory
8GB SO-DIMM DDR4 RAM
Memory Expandable up to: 64GB (2x 32GB)
Hard Disk
HDD Bays: 8 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
M.2 Drive Slots (SSD Cache): 2x M.2 PCIe (NVMe) / SATA (M.2 2280, 2260, 2242)
Maximum Internal Raw Capacity: 144 TB (18 TB HDD X 8, Capacity may vary by RAID types)
Network
10 Gigabit Ethernet x 2 (10G/1G);
2.5 Gigabit Ethernet x 2 (2.5G/1G/100M)
Fans
120mm x 2
Power Supply and Cable
Power Supply Unit / Adapter 250W x1
Input Power Voltage 100V to 240V AC
Power Consumption-
66.9W (Operation)
37.2W (Disk Hibernation)
Drive Bays
10
I/O Slots
USB 3.2 Gen 1 x 2
Others
LCD Panel: Yes
Certification: FCC, CE, VCCI, BSMI, C-TICK
Size: 215.5 x 293 x 230 mm
Weight: 6.2 Kg
Warranty
03 years warranty

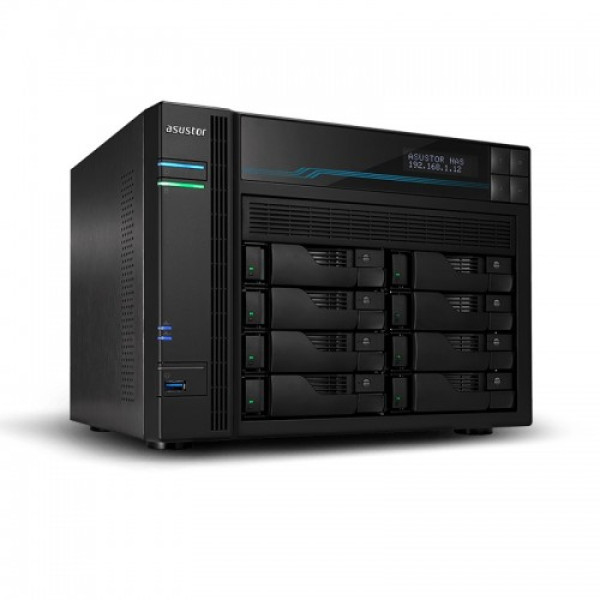

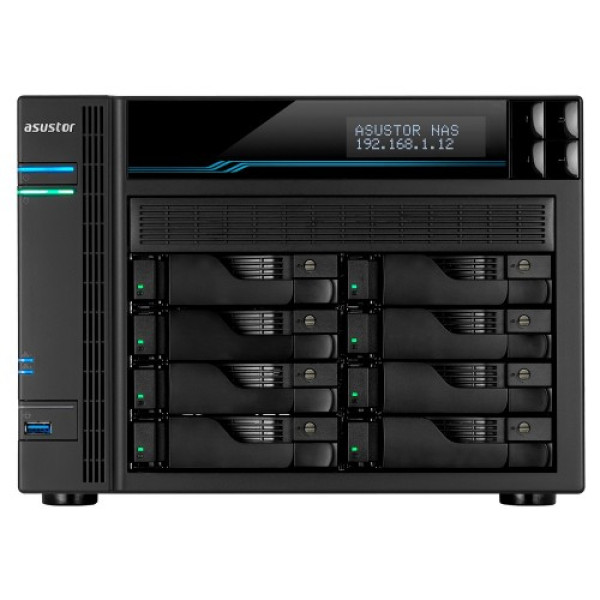

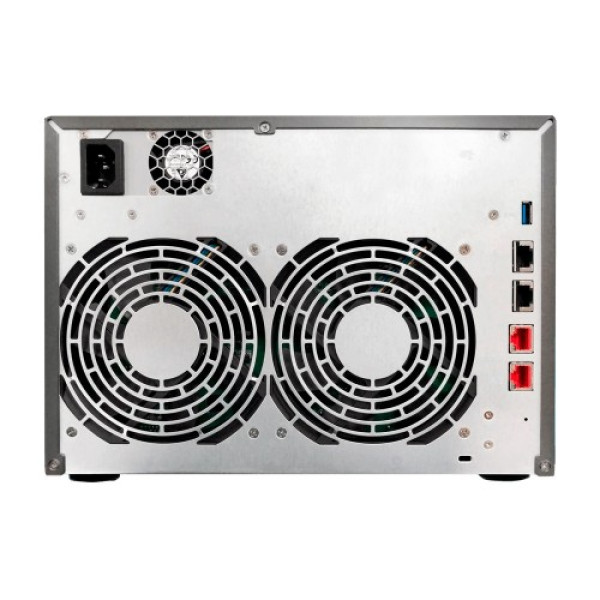

The all-new Lockerstor series of NAS features dual Intel 10-Gigabit Ethernet ports as well as dual Realtek 2.5-Gigabit Ethernet ports. With a managed switch that supports multiple speeds, take advantage of up to 20 Gbps of speed with both 10-Gigabit ports or up to 5 Gbps on both 2.5-Gigabit ports. The recently updated ADM features an updated Linux Kernel and additional performance enhancements. The Lockerstor series introduces M.2 PCIe NVMe SSD caching increasing performance. With dual 10-Gigabit Ethernet, bottlenecks on NVMe SSDs have been lifted, making the Lockerstor one of the fastest NAS devices ever.
