Voltage
Input Voltage: Nominal: 230V
Output Voltage: Nominal: 230V; Total Current Draw : 32Amp
Capacity
32Amp
Connection
Input Connection IEC 309 32A 2P+E

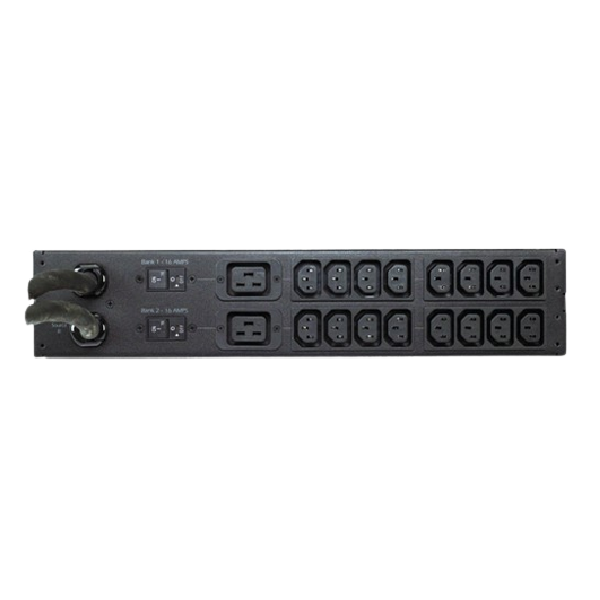

Output Connection (16) IEC 320 C13 (Battery Backup), (2) IEC 320 C19 (Battery Backup
Cable Length
Cord Length : 2.44meters ; Number of Power Cords : 2
Frequency
50/60 Hz
Input Current
32A
Temperature
Operating Temperature : (-5 - 45 °C) ; Storage Temperature : (-25 - 65 °C)
Relative Humidity
Operating Relative Humidity : 5 - 95 % ; Storage Relative Humidity : 5 - 95 %
Certification
RoHS
Others
Current Monitoring
Wide range of input and output connections
Quick Transfer Rate
Dual Input Power Sources
Network Management Capabilities
Color LCD display
Dimension
Maximum Height : 88mm , 8.8CM ; Maximum Width : 432mm , 43.2CM ; Maximum Depth : 236mm ,23.6CM ; Rack Height : 2U
Weight
6.86KG
Color
Black

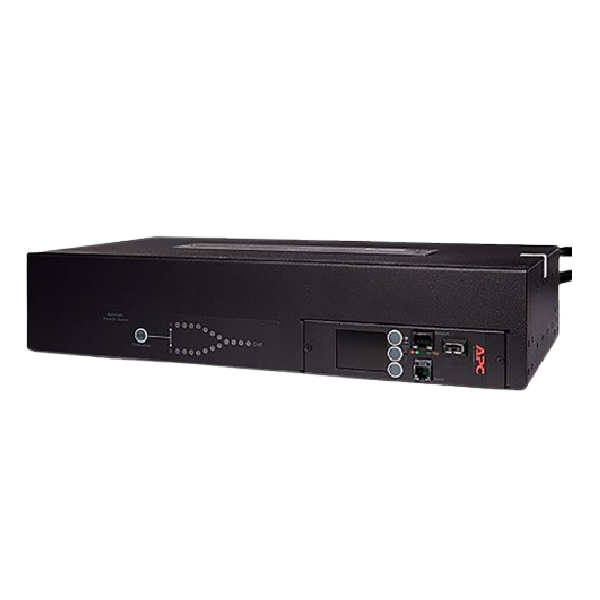

The APC AP4424 32Amp 230V Rack Automatic Transfer Switch gives single-corded equipment stable, redundant power. If the primary source fails, the Rack ATS will effortlessly switch to the secondary source without disrupting important loads. Networked units provide network connectivity, allowing for remote management via Web, SNMP, or Telnet interfaces.
