Voltage
Input Voltage: Nominal: 230V
Output Voltage: Nominal : 230V; Total Current Draw : 162Amp
Capacity
16Amp
Connection
Input Connection: IEC-320 C20

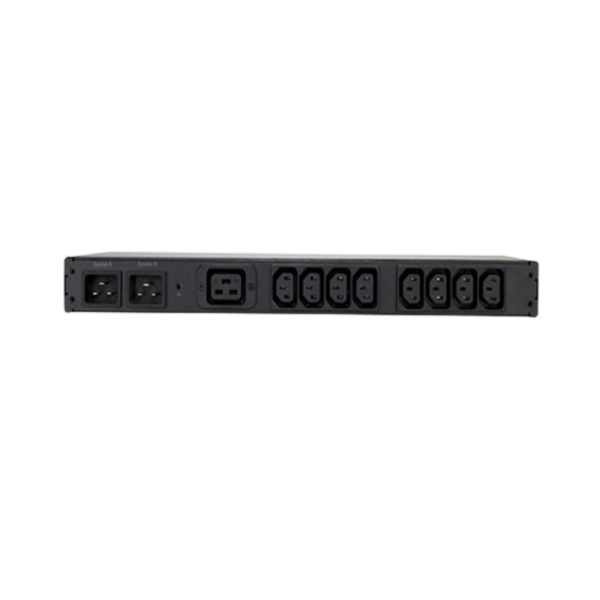

Output Connection: (1) IEC 320 C19 (Battery Backup), (8) IEC 320 C13 (Battery Backup)
Cable Length
Cord Length : 2.44meters ; Number of Power Cords : 1
Frequency
50/60 Hz
Input Current
20A
Temperature
Operating Temperature : (-5 - 45 °C) ; Storage Temperature : (-25 - 65 °C
Relative Humidity
Operating Relative Humidity : 5 - 95 % ; Storage Relative Humidity : 5 - 95 %
Certification
RoHS
Others
Current Monitoring
Wide range of input and output connections
Quick Transfer Rate
Dual Input Power Sources
Network Management Capabilities
Color LCD display
Dimension
Maximum Height : 44mm , 4.4CM ; Maximum Width : 432mm , 43.2CM ; Maximum Depth : 236mm ,23.6CM ; Rack Height : 1U
Weight
3.74KG
Color
Black

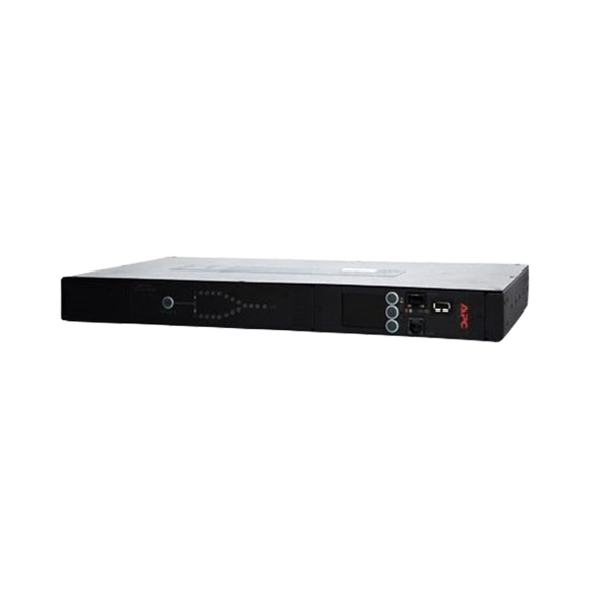

The APC AP4423 16Amp 230V Rack Automatic Transfer Switch gives single-corded equipment stable, redundant power. If the primary source fails, the Rack ATS will effortlessly switch to the secondary source without disrupting important loads. Networked units provide network connectivity, allowing for remote management via Web, SNMP, or Telnet interfaces.
