Antenna
2 x detachable antennas
Button
Power on/off Wireless on/off WPS Reset
Frequency
802.11 b/g/n 2.4 GHz 802.11 a/n/ac 5 GHz
Interface

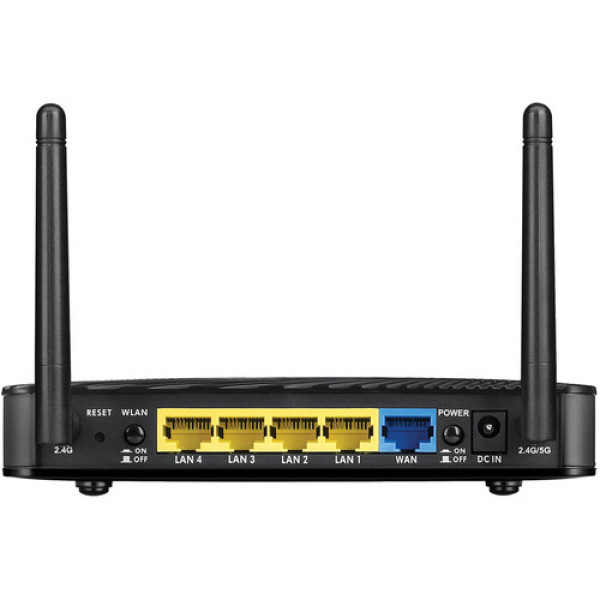

WAN LAN (1 - 4)
Network Standard
WAN: 10/100 Mb/s Ethernet RJ-45 port with auto MDI/MDIX support LAN: Four 10/100 Mb/s Ethernet RJ-45 ports with auto MDI/MDIX support
Others
WLAN: Router/AP mode Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Auto channel selection Wireless scheduling Wireless output power management Routing: Network Address Translation (NAT) WAN Connection Type: static IP, DHCP, PPPoE, PPTP DHCP server/client IGMP v1/v2 Dynamic DNS Bandwidth management IP/Application port based QoS Auto-IP change VPN Pass-Through: IPSec/PPTP/L2TP Firewall: Deny of Service (DoS) prevention System Management: Online firmware upgrade UPnP
Encryption
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK MAC address filtering
Ports
5 Ports
Dimension
157.4 x 22.8 x 109.2 mm
Weight
230 g
Color
Black
Warranty
1 Year

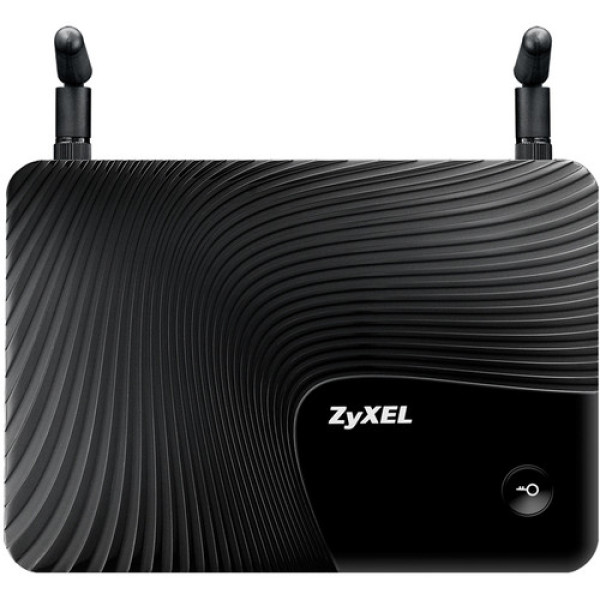

Zyxel NBG 6503 750Mbps Dual-Band AC750 Wireless Router Data transfer rates of up to 750 Mb/s over concurrent dual bands are provided by the home router. A 5 GHz bandwidth for smooth video streaming is supported by the mobile gadgets. Web browsing and file transfers are optimized for simultaneous access from a mobile, laptop, and desktop devices thanks to the 2.4 GHz bandwidth. An "Easy Mode" for navigating functions, basic setup, and system configuration is included in the user-friendly interface of this router. High-definition video streaming, gaming, and web surfing are all prioritized by the router's QoS function. This router is able to detect the length of the connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable's length, the less power it draws. Easy to adjust the output power to reduce interference with neighboring access points within high wireless density areas. Smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the router detects no active data transmission, the device automatically enters the power-saving mode to avoid energy wastage.
