Display
TFT LCD Color Screen
ID Card capacity
30,000
Logs capacity
80,000
Interfaces
3rd party electric lock, door sensor, exit button, alarm, doorbell
Optional Function
IC Card, Print Function, Felica Card, Webserver, Workcode
Wiegand Signal
Output & Input, SRB
Communication
TCP/IP, RS485, USB-Host
Power Supply
DC 12V
Operating Temperature
0°C ~ 45°C
Operating Humidity
20% ~ 80%
Dimensions
130 × 94 × 52mm (LxWxH)

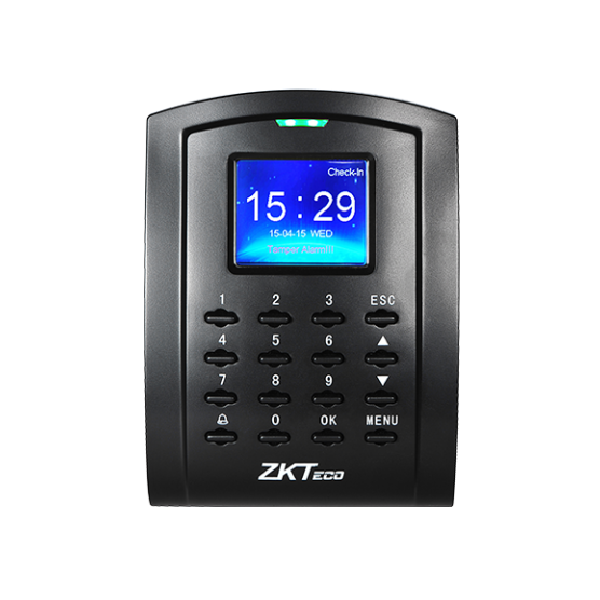

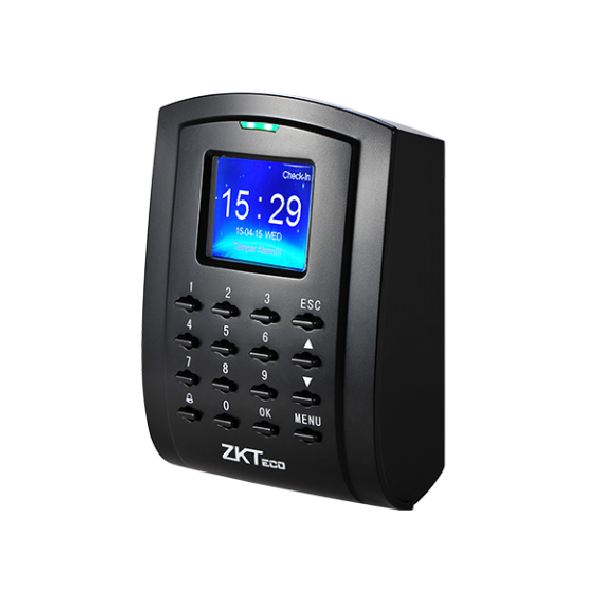

The ZKTeco SC105 Color TFT & Graphical UI RFID Access Control Terminal is a device that can control the access of authorized personnel using their ID cards. It has a color TFT screen that can show the graphical user interface and the status of the device. It can store up to 30,000 ID cards and 80,000 transactions, which can be transferred to a computer via USB or TCP/IP. It also has a standard function of anti-passback, which prevents the same card from being used twice in a row.
