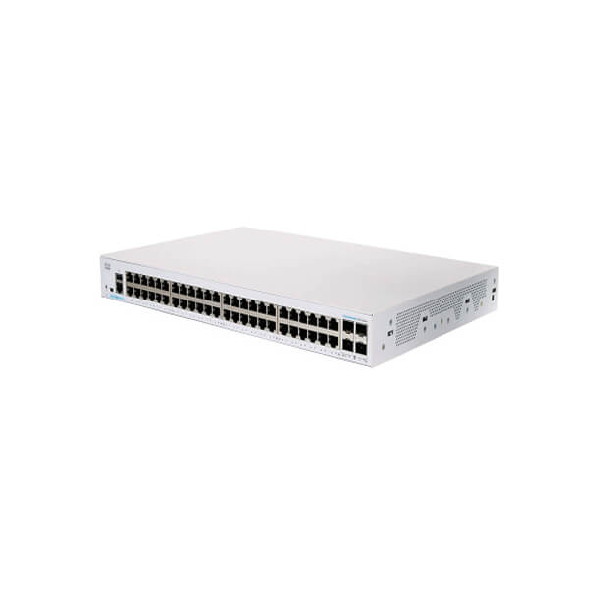

Type

Device Type: Switch – 48 ports – L3 – managed
Enclosure Type: Rack-mountable
Sub type: Gigabit Ethernet

Port

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 4
USB 2.0 ports quantity: 1

Network Standard

IEEE 802.1D
IEEE 802.1s
IEEE 802.1w
10G support: Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Number of VLANs: 4094

MAC Address Table

16K

Environment

Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -25 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%

Interface

48 x 10/100/1000 ports
4 Gigabit SFP

Power Supply

Power Supply Type: Internal
System Power Consumption: 110V=48.27W, 220V=48.64W

Dimensions (L x W x H)

445 x 273 x 44 mm (17.5 x 10.73 x 1.73 in)

Weight

3.95 kg (8.71lb)
