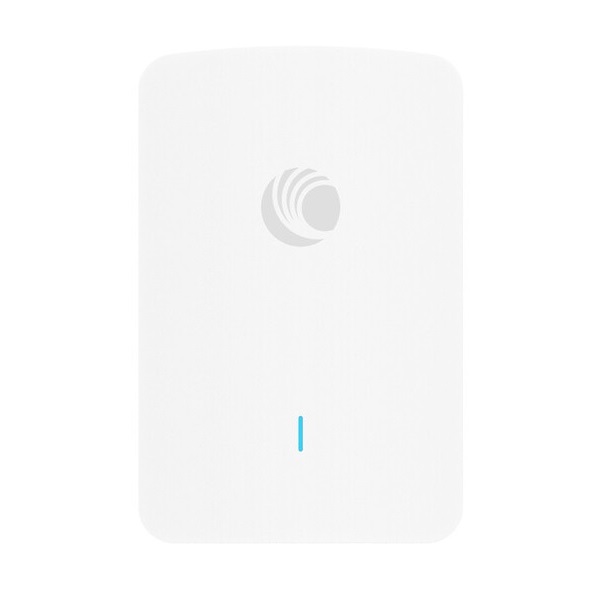

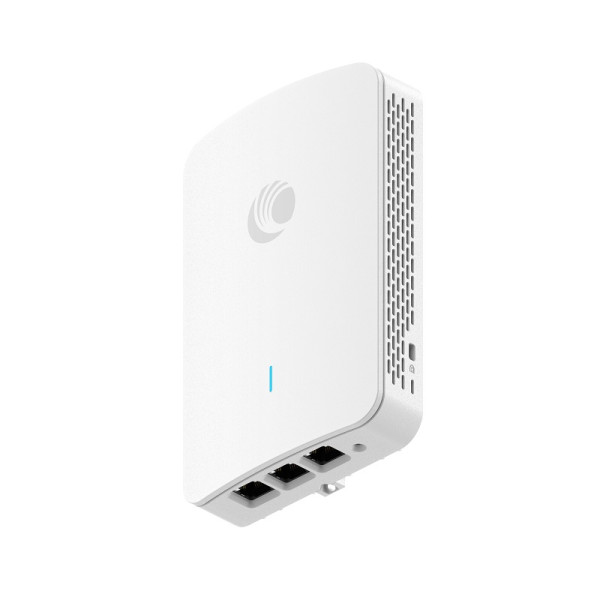

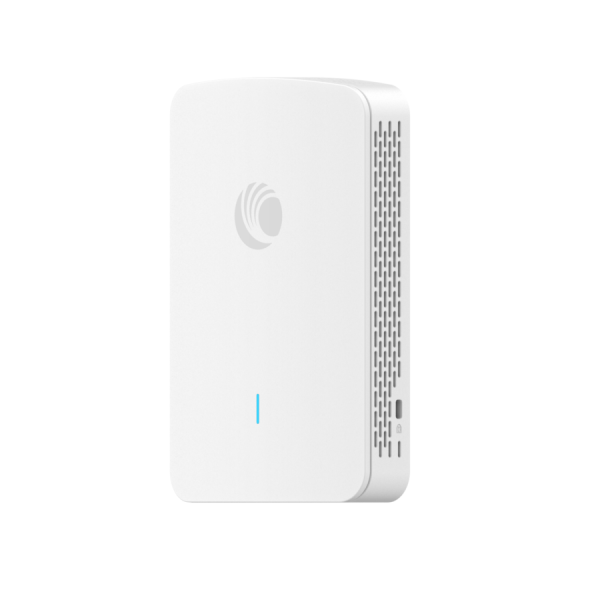

Cambium Networks XV2-22H Wi-Fi 6 Wall Plate Access Point

Key Features
  • Wallplate 802.11ax, 2×2
  • 3 x GbE Ethernet, one with PoE out
  • RJ45 electrical pass-through ports
  • BLE/Zigbee/Thread/Matter
Call for Price
Call for Best Price: 01322811394

Technical specifications

Antenna

Internal omni-directional 2.4 GHz: 4.47 dBi 5 GHz: 5.56 dBi IoT Antenna Gain: 5.18 dBi

Wireless Rate

1 x 5 GHz radio (802.11ax Wi-Fi 6), 2x2:2
1 x 2.4 GHz 802.11ax Wi-Fi 6), 2x2:2
1 x 802.15.4 or 1 x 802.15.1 IoT transceiver, multi-protocol

Wireless standards

802.11ax Wi-Fi 6

Wireless Security

WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open

Warranty

Lifetime

Description :

Cambium Networks XV2-22H Wi-Fi 6 Wall Plate Access Point

Enhance your business with reliable wireless network connectivity using the new Cambium Networks XV2-22H Wi-Fi 6 Wall Plate Access Point. Supporting up to 128 clients and 16 SSIDs, this access point may be quickly mounted to a wall plate using the included junction box mounting kit, making it ideal for supporting a variety of IoT devices. Transfer data and power to the access point by connecting the rear PoE+ compliant Gigabit Ethernet uplink port to your compatible network. Two Gigabit Ethernet ports are available on the bottom of the unit, each supporting up to 10W of PoE. There is also an RJ45 passthrough leading from the rear to the bottom. Once configured locally or using cloud-based platforms such as cnMaestro, the XV2-22H can deliver up to a combined 2976 Mb/s throughput rate over the 2.4 GHz and 5 GHz bands with compatible devices. You can also set up a custom captive portal to advertise your business and separate user access. Your wireless network is secured with WPA3 encryption.
