Fan Type
EC backward-curved centrifugal motor fan
Airflow
18800 m3/h
Others
Fans: 2 nr.
Gross total cooling capacity: 90,8 kW
Gross sensible cooling capacity: 74,6 kW
Power Supply
3 ph
50 Hz
Power Voltage
400V
Dimensions
1950mm x 1777mm x 900mm (HxLxD)
Fan module height: 565mm

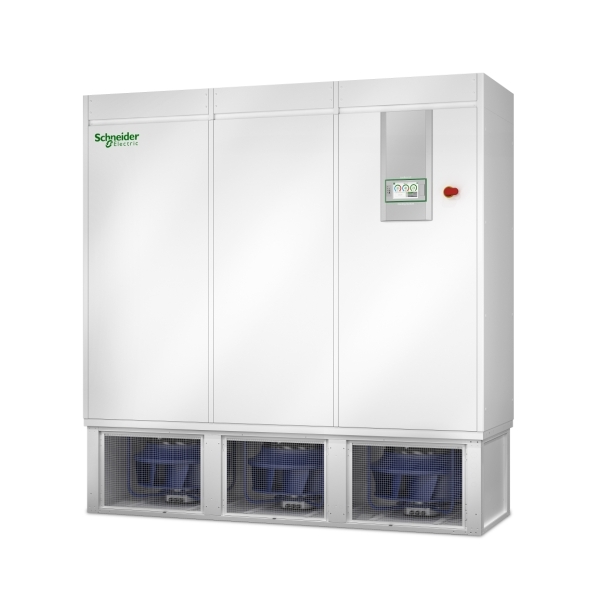

The unit features an underfloor configuration with multiple fan module configurations, a metal structural frame, and high-efficiency EU4 pleated air filters. It is equipped with the latest generation Radical EC Fans for efficiency maximization and a cooling coil. The unit has a double refrigerant circuit with a scroll compressor, and an electrical panel complying with Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. It also has a 7-inch IT Touch Screen display interface and Schneider Electric IT J-Controller.
